2-12 Inch A-USP2 RWGV FLxFL

public://uploads/a-2362-flxfl-850px.png

2-12 Inch A-USP2 RWGV FLxFL

Catalog number: A-USP2-6

Specifications:

  • Flanged ends
  • Sizes – 2", 2-1/2", 3”, 4", 6", 8", 10", 12"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509 and C515, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 and 372†
  • Flanged end drilling complies with ASME/ANSI B16.1 class 125 and B16.42 class 150
  • Iron body with nominal 10 mils Pro-Guard® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut – open left or open right
  • 350 psig (1725 kPa/17 barg) maximum working pressure, 700 psig (3450 kPa/35 barg) static test pressure
  • UL Listed, FM Approved: 350 psig (1725 kPa/17 barg)
  • Designed for potable water applications
† Approved for backflow prevention devices by USC (for 4" - 10" sizes)

Options*:

  • Position indicators
  • Stainless steel stem: Type 304, Type 316
  • 2" square wrench nut
  • P/N 10/16 Drilling
  • EPDM Disc and O-rings
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
*See Parts section below for more information on Resilient Wedge Gate Valve options.


Resources:



Full Line Catalog

A-USP2 3in - 12in FLxFL Dimensions Drawing

Dimension

 Nominal Size

2"

2-1/2"

3”

4"

6"

8"

10"

12"

A

9.88

12.38

12.38

14.19

18.00

21.50

25.50

28.62

E

6.00

6.00

8.00

11.00

13.00

14.00

16.00

16.00

R

6.00

7.00

7.50

9.00

11.00

13.50

16.00

19.00

FF

7.00

7.50

8.00

9.00

10.50

11.50

13.00

14.00

Q (bore)

2.30

2.80

3.30

4.30

6.30

8.30

10.30

12.30

UU (bolt circle diameter)

4.75

5.50

6.00

7.50

9.50

11.75

14.25

17.00

B (number and size of holes)

4--.75

4--.75

4--.75

8--.75

8--.88

8--.88

12--1.00

12--1.00

Turns to open

8

11

11

14

20.5

26.5

33

38.5

Weight*

37

71

73

96

154

250

392

522

*All dimensions are in inches. All weights are in pounds and are approximate.

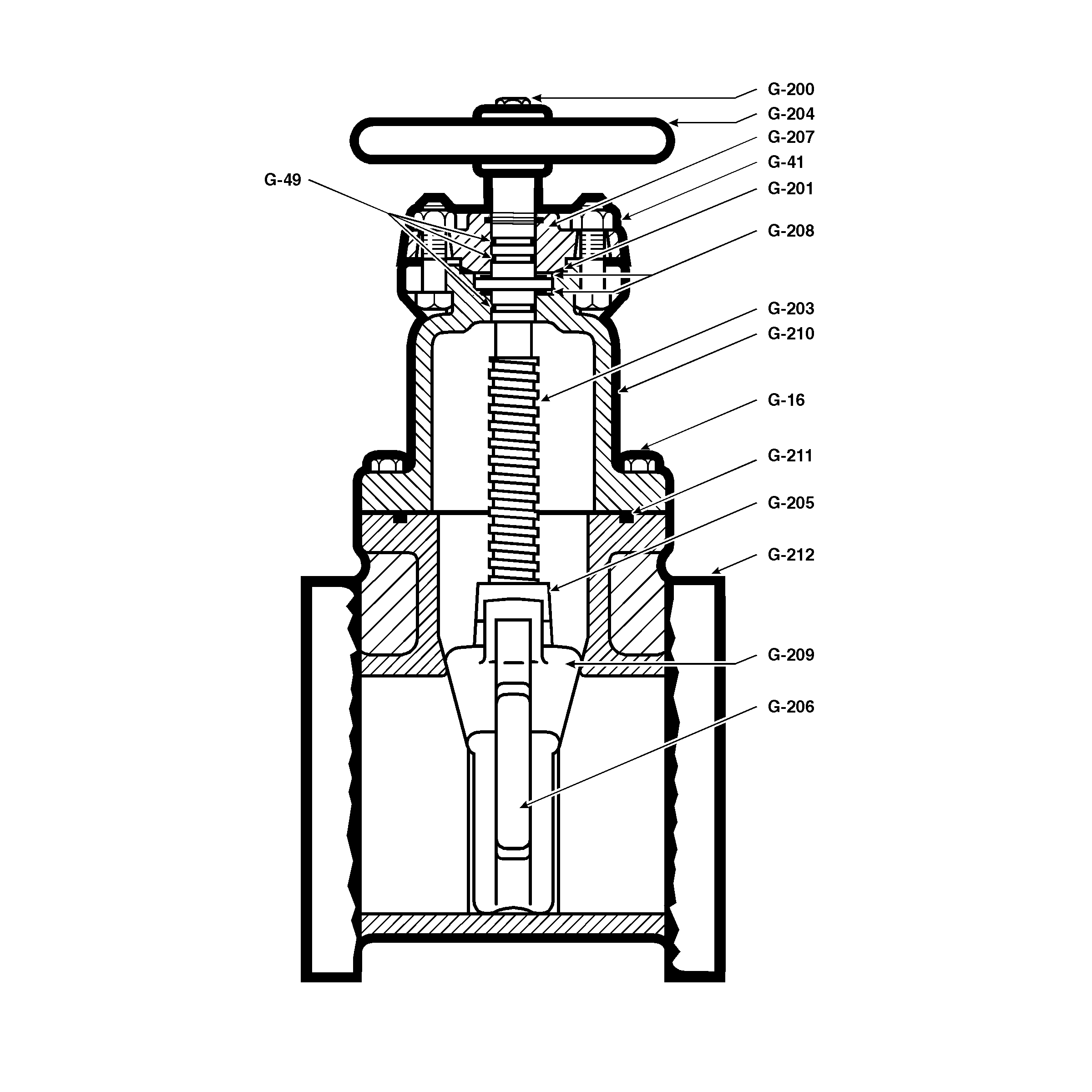

A-USP2 3in - 12in FLxFL Parts Diagram

Catalog Part No.

Description

Material

Material Standard

G-16

Bonnet Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-41

Stuffing Box Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-200

Wrench Nut Cap Screw

316 Stainless Steel

ASTM F593

G-201

Stuffing Box O-ring

Nitrile

ASTM D2000

G-202

Wrench Nut

Ductile Iron

ASTM A536 ▼

G-203

Stem

Bronze

ASTM B138

G-204

Hand Wheel

Cast Iron

ASTM A126 CL.B

G-205

Stem Nut

Bronze

ASTM B584

G-206

Guide Cap Bearings

Acetal

-

G-207

Stuffing Box with dirt seal**

Ductile Iron+++ Nitrile

ASTM A536 ▼ ASTM D2000

G-208

Anti-friction Washers (2)

Acetal

-

G-209

Wedge, Rubber Encapsulation

Ductile Iron* SBR

ASTM A536 ▼ ASTM D2000

G-210**

Bonnet

Ductile Iron

ASTM A536 ▼

G-211**

Bonnet O-ring ++

Nitrile

ASTM D2000

G-212**

Body

Ductile Iron

ASTM A536 ▼

*Fully encapsulated in molded rubber with no iron exposed, 2"-3" discs are cast iron ASTM A126 class B
**Dirt seal on 4”-12” valves
▼ Material strength ASTM A536 65-45 minimum
+Manufacturer's option to change material to ductile iron ASTM A536
++ 2"-3" valves use a bonnet gasket
+++ 2"-3" stuffing boxes are cast iron ASTM A126 class B+
