14-24 Inch P-USP1 RWGV PIV MJxMJ

14-24 Inch P-USP1 RWGV PIV MJxMJ

Catalog numbers:

  • P-USP1-20 (with M.J. Accessories+)
  • P-USP1-23 (less M.J. Accessories)

Specifications:

  • Mechanical joint ends
  • Indicator Post Style Stuffing box
  • 2" Square Operating Nut
  • 14", 16", 18", 20" and 24" sizes
  • UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
  • 14" and 16" sizes are also FM 1120/1130 approved
  • Ductile iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Non-rising bronze stem
  • Rubber encapsulated iron wedge, no iron exposed
  • 14"-16" 250psig (1725 kPa/17 barg) maximum working pressure, 500psig (3400 kPa/34 barg) hydro static test
  • 18"-24" UL Listed 175psig (1200 kPa/12 barg) maximum working pressure, FM Approved 250psig (1725 kPa/17 barg), 500psig (3450 kPa/35 barg) hydro static test
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • Epoxy coating meets or exceeds ANSI/AWWA C550
  • Meets or exceeds all applicable requirements of ANSI/AWWA C515

Options:

  • Stainless steel stem: Type 304 and Type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • EPDM disc and O-rings (14"-16" option and 18"-24" standard)

Resources:

P-USP1-20 MJxMJ 14-24 Dimensions Drawing



Dimension*

Size

14"

16"

18"

20"

24"

A

32.75"

37.88"

44.19"

48.25"

53.88"

FF

19.88"

19.75"

21.00"

21.50"

23.50"

E

12.00"

12.00"

12.00"

12.00"

12.00"

Q (Bore)

14.38"

16.00"

18.38"

20.38"

24.38"

OO (Bolt circle for MJ)

18.75"

21.00"

23.25"

25.50"

30.00"

N

20.62"

22.56"

24.88"

27.24"

31.88"

L

3.50"

3.50"

3.50"

3.50"

3.50"

DD

12.36"

12.55"

13.90"

14.13"

16.06"

O (number and size of holes)

10-0.88"

12-0.88"

12-0.88"

14-0.88"

16-0.88"

Turns to open

43.5

49

57

63

75

Weight (lbs.)*

650

931

1298

1640

2423

*All dimensions are in inches. All weights are in approximate pounds.

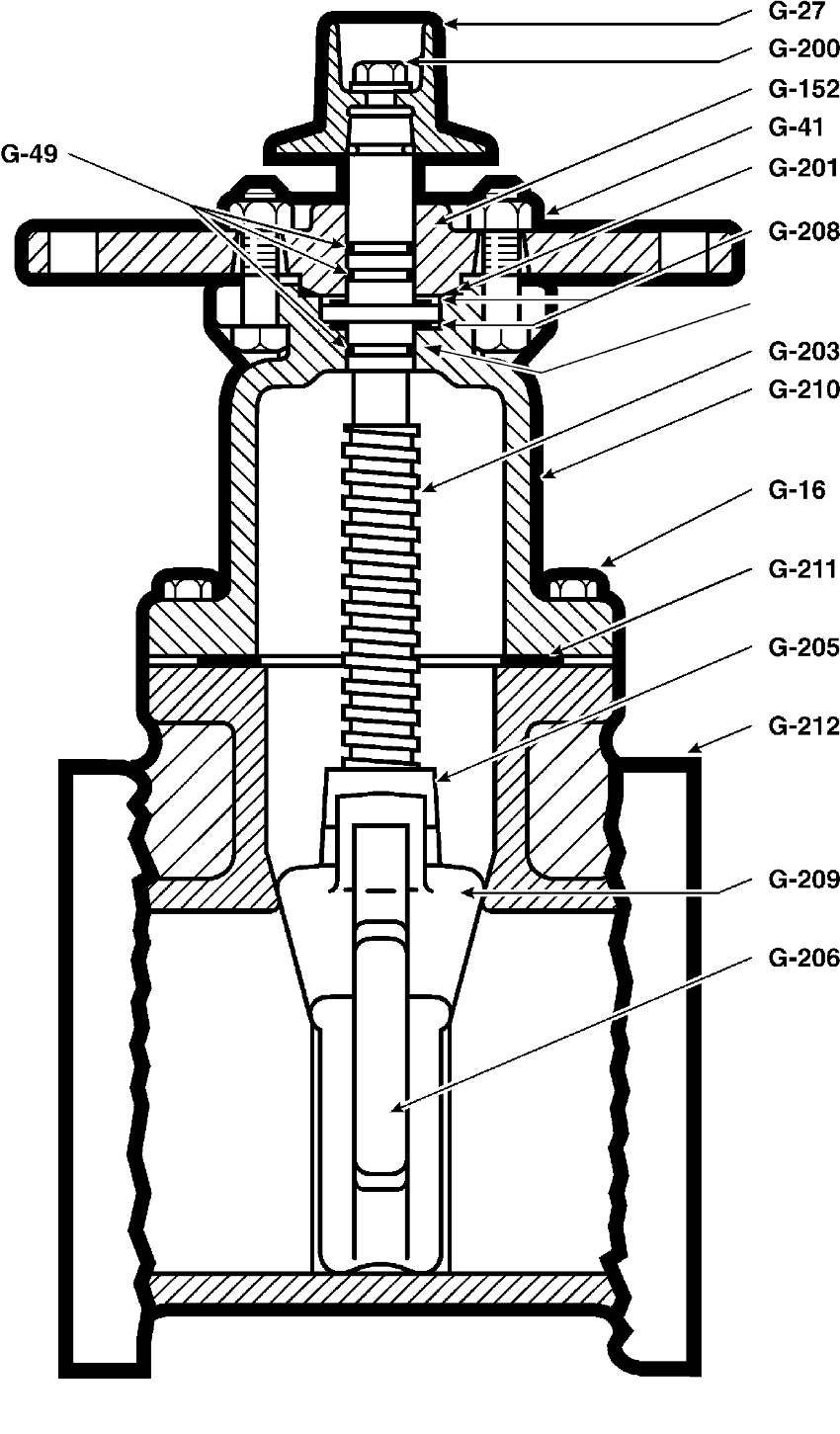

P-USP1-20 MJxMJ 14-24in Parts Drawing

Catalog Part

Number

Description

Material

Material Standard

G-16

Bonnet Bolts & Nuts

316 Stainless steel

ASTM F593 (bolt) / ASTM F594 (nut)

G-27

Wrench Nut

Cast Iron+++

ASTM A126 CL.B

G-41

Stuffing Box Bolts & Nuts

316 Stainless steel

ASTM F593 (bolt) / ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile++

ASTM D2000

G-152

Stuffing Box

Ductile Iron

ASTM A536 ▼

G-200

Wrench Nut Cap Screw

316 Stainless steel

ASTM F593

G-201

Stuffing Box Seal

Nitrile++

ASTM D2000

G-203

Stem

Bronze

ASTM B138***

G-205

Stem Nut

Bronze

ASTM B62

G-206

Guide Cap Bearings

Acetal

-

G-208

Anti-friction Washers (2)

Brass

ASTM B21

G-209

Wedge, Rubber Ecapsulated

Ductile Iron**

ASTM A536 ▼

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet O-ring

Nitrile++

ASTM D2000

G-220

Bonnet Bushings (18"-24")

Brass

ASTM B62

G-212

Body

Ductile Iron

ASTM A536 ▼

+MJ accessories are included and palletized separately from valves.
** Fully encapsulated in molded rubber with no iron exposed.
*** 18" - 24" ASTM B584
++ 14"-16" / 18"-24" EPDM ASTM D2000
+++ Manufacturer's option to upgrade material to Ductile iron ASTM A536
▼ Material strength ASTM A536 65-45 minimum
▼ ▼ 14"-16" valves are provided with 316 stainless steel fasteners as standard
