14-24 Inch T-2380 Tapping Valve MJxFL

14-24 Inch T-2380 Tapping Valve MJxFL

Flanged x mechanical joint with M.J. accessories

Catalog number: T-2380

Specifications:

  • Meets or exceeds all applicable requirements of ANSI/AWWA C500 Standard
  • Certified to ANSI/NSF 61
  • Sizes--14", 16", 18", 20", 24"
  • Designed for potable water applications
  • 150 psig rated working pressure

Options:

  • Bevel or spur gearing
  • Position indicators
  • Epoxy Coating
  • 316 Stainless steel fasteners
  • Handwheel

Full Line Catalog

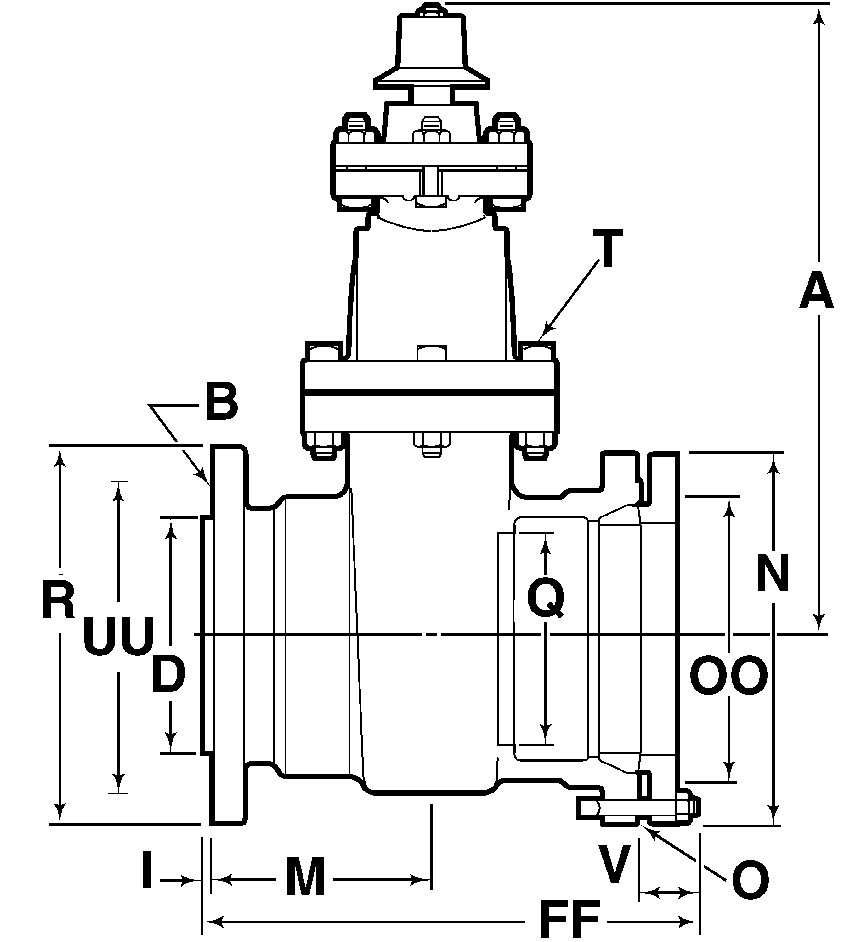

Double Disc NRS Tapping Valve MJ FL Dimensions Drawing



Dimensions*

Nominal Size**

14"

16"

18"

20"

24"

A

34.13

39

43

47.5

55.75

Q (bore)

14.25

16.25

18.25

20.25

24.25

R

21

23.5

25

27.5

32

D

15.25

17.25

19.47

21.47

25.47

I

0.25

0.25

0.25

0.25

0.25

M

7.50

10.38

11

11.13

12.75

FF

17.89

23.56

24.75

25.13

28.13

V

2.63

3.01

3

2.47

3.47

N

20.31

22.56

24.81

27.01

31.56

T

18

18

20

20

24

B (number and size of bolts for FL)

12--1

16--1

16--1.125

20--1.125

20--1.25

O (number and size of bolts for MJ)

10--.88

12--.75

12--.75

14--.75

16--.75

UU (bolt circle diameter for FL)

18.75

21.25

22.75

25.00

29.50

OO (bolt circle diameter for MJ)

18.75

21.00

23.25

25.50

30.00

Turns to open

46

53

59

65

77

Weight*

826

1144

1653

2300

3190

* All dimensions are in inches. All weights include accessories are in pounds and approximate.
** Nominal.

Double-disc Tapping Valve Parts

Catalog Part No.

Description

Material

Material Standard

G-15

Bonnet gasket

Composition

ASTMD1170

G-16

Bonnet bolts & nuts

316 Stainless steel

ASTM F593 (bolt)
ASTM F594 (nut)

G-17

Seat ring

Bronze

ASTM B62

G-46

Disc and disc ring

Cast iron**

ASTM A126 CL.B

G-20

Disc pin

Bronze

ASTM B21

G-21

Side spreader

Bronze

ASTM B62

G-22

Bottom wedge

Cast iron

ASTM A126 CL.B

G-78

Test plug

Iron

-

G-26

Nut for wrench nut

316 Stainless steel

ASTM F594

G-32

Stuffing box gasket

Fiber

-

G-37

Top wedge nut

Cast iron**

ASTM A126 CL.B

G-38

Wrench nut

Cast iron

ASTM A126 CL.B

G-41

Stuffing box bolt & nut

316 Stainless steel

ASTM F593 (bolt)
ASTM F594 (nut)

G-42

Stem

Bronze

ASTM B138

G-43

Bonnet

Cast iron

ASTM A126 CL.B

G-45

Hand Wheel

Cast iron

ASTM A126 CL.B

G-77

Body

Cast iron

ASTM A126 CL.B

G-48

Suffing box O-ring

Rubber

ASTM D2000

G-49

Stem O-ring

Rubber

ASTM D2000

G-50

Stuffing box

Cast iron

ASTM A126 CL.B

G-79

Inlet flange gasket

Composition

-

G-80

Inlet flange bolts and nuts

Steel

-

** Cast iron discs with rolled-in bronze facings; cast iron top wedge nut with integrally cast bronze busing.
