SA Series
SA Series
Catalog number: 0600-850M-0
Specifications:
- Size – 6"
- Ductile iron body and cover
- 100% unobstructed flow path
- Inherit non-slam, quiet operation
- Bubble-tight shut off, without backflow
- Swivel MJ gland on one end aids pipe or valve alignment
- Liquid thermosetting epoxy coated interior
- Universal primer enamel on exterior
- Stainless steel bolts
- Domed bonnet for easy inspection of flexible disc and seat
- Universal primer enamel on exterior
- Rated at 250 psi (1725 kPa/17 barg)

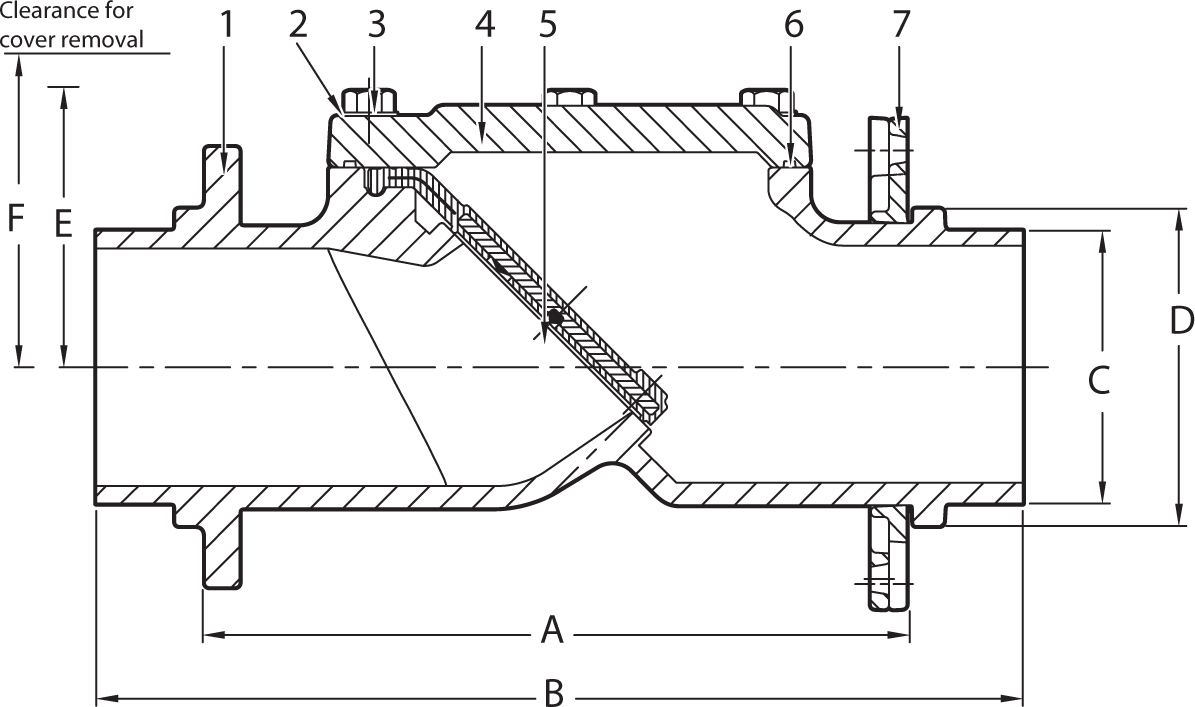

Dimensions**
|
ValveSize* |
A |
B |
C |
D |
E |
F |
Weight** |
|
6" |
17.63" |
24.50" |
6.90" |
8.02" |
6.81" |
11.00" |
175 |
**All dimensions are in inches. All weights are in pounds and are approximate.
|
Part Number |
Description |
Material |
Material Standard |
|
1 |
Body |
Ductile Iron |
ASTM A536 |
|
2 |
Washer |
Stainless Steel |
A276 Type 304 |
|
3 |
Cover Bolt |
Stainless Steel |
A276 Type 304 |
|
4 |
Cover |
Ductile Iron |
ASTM A536 |
|
5 |
Disc |
Ductile Iron and EPDM |
ASTM 536 and D2000 |
|
6 |
O-ring |
Rubber |
ASTM D2000 |
|
7 |
Swivel Flange |
Ductile Iron |
ASTM A536 |
