U-20807: Adjustable Type Indicator Post
- UL Listed
Extension Section (U-20815) Lengths:
- 1' -0", 1'-6", 2'-0", 2'-6", 3'-0", 3'-6", 4'-0", 4'-6", 5'-0"
Nominal Trench Depts for Mueller Resilient Wedge Post Indicator Valves
| Valve Size |
"ORDER LENGTH" | |||||||||||
| A | B | C | D | E | F | |||||||
| Min. | Max | Min. | Max | Min. | Max | Min. | Max | Min. | Max | Min. | Max | |
| 16" | 4' - 10" | 6' - 8" | 6' - 5" | 8' - 5" | 8' - 2" | 10' - 2" | 9' - 11" | 11' - 11" | 11' - 8" | 13' - 8" | 13' - 5" | 15' - 5" |
| 18" | 5' - 5" | 7' - 3" | 7' - 0" | 9' - 0" | 8' - 9" | 10' - 9" | 10' - 6" | 12' - 6" | 12' - 3" | 14' - 3" | 14' - 0" | 16' - 0" |
| 20" | 5' - 10" | 7' - 8" | 7' - 4" | 9' - 5" | 9' - 1" | 11' - 2" | 10' - 10" | 12' - 11" | 12' - 7" | 14' - 8" | 14' - 4" | 16' - 5" |
| 24" | 6' - 6" | 8' - 4" | 8' - 1" | 10' - 1" | 9' - 10" | 11' - 10" | 11' - 7" | 13' - 7" | 13' - 4" | 15' - 4" | 15' - 1" | 17' - 1" |

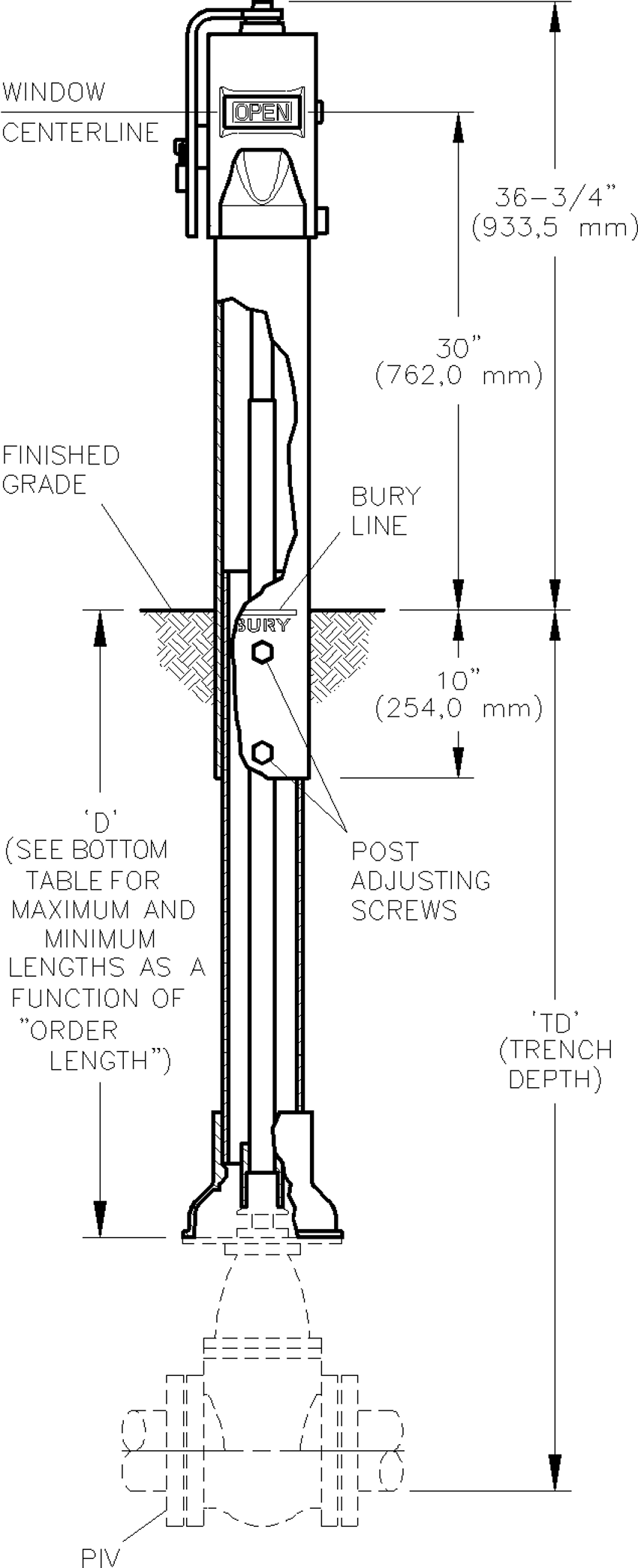

D Dimension Adjustment Range
|
|
"ORDER LENGTH" | |||||
| A | B | C | D | E | F | |
| Min. | 17.25" | 36.00" | 57.00" | 78.00" | 99.00" | 120.00" |
| Max. | 39.25" | 60.25" | 81.25" | 102.25" | 123.25" | 144.25" |
|
Catalog Part No. |
Description |
Material |
Material Standard |
|
P206 |
SHUT Target |
Plastic |
Nylon |
|
P209 |
OPEN Target |
Plastic |
Nylon |
|
P217 |
Cotter Pin (short) |
Brass |
ASTM B21 |
|
P218 |
Coupling |
Steel |
ASTM A500 GR.B |
|
P219 |
Cotter Pin (long) |
Brass |
ASTM B21 |
|
P242 |
Retaining ring |
Stainless Steel |
AISI 302 |
|
P244 |
Hex Bolt |
Steel/zinc plated |
ASTM A307 GR.A |
|
P248 |
Post Head |
Gray Iron |
ASTM A126 CL.B |
|
P273 |
Bell |
Gray Iron |
ASTM A126 CL.B |
|
P303 |
Hex Nut |
Steel/zinc plated |
ASTM A563 GR.A |
|
P304 |
Operating Nut |
Ductile Iron |
ASTM A536 GR.65-45-12 |
|
P305 |
Cap |
Plastic |
Polypropylene |
|
P307 |
Spring pin |
Stainless Steel |
AISI 420 |
|
P308 |
Threaded sleeve |
Aluminum |
Alloy 319 |
|
P309 |
Upper stem |
Steel |
ASTM A513 |
|
P315 |
Pipe plug - hex socket |
Steel |
|
|
P317 |
Window |
Plexiglass |
|
|
P322 |
Hex head screw |
Steel/zinc plated |
ASTM A307 GR.A |
|
P323 |
Lower Barrel |
PVC |
DR14 UL Listed |
|
P324 |
Upper Barrel |
Steel |
ASTM A53 GR.B |
|
P325 |
Wrench |
Steel |
ASTM A35 HRS |
|
P326 |
Lower Stem |
Steel |
ASTM A500 GR.B |
|
P329 |
Socket head set screw |
Steel |
ANSI B18.3 |
|
P350 |
Coupling Insert |
Steel |
ASTM A500 GR.B |
