U-20809
U-20809
Catalog Number:
- U-20809: Non-Adjustable Indicator Post
- UL Listed
Extension Section (U-20815) Lengths:
- 1' -0", 1'-6", 2'-0", 2'-6", 3'-0", 3'-6", 4'-0", 4'-6", 5'-0"
Maximum Bury (Trench)
|
Size No. |
Valve Size |
|||
|
16" |
18" |
20" |
24" |
|
|
0 |
3' - 7" |
4' - 2" |
4' - 6" |
5' - 3" |
|
1 |
4' - 1" |
4' - 8" |
5' - 0" |
5' - 9" |
|
2 |
4' - 7" |
5' - 2" |
5' - 6" |
6' - 3" |

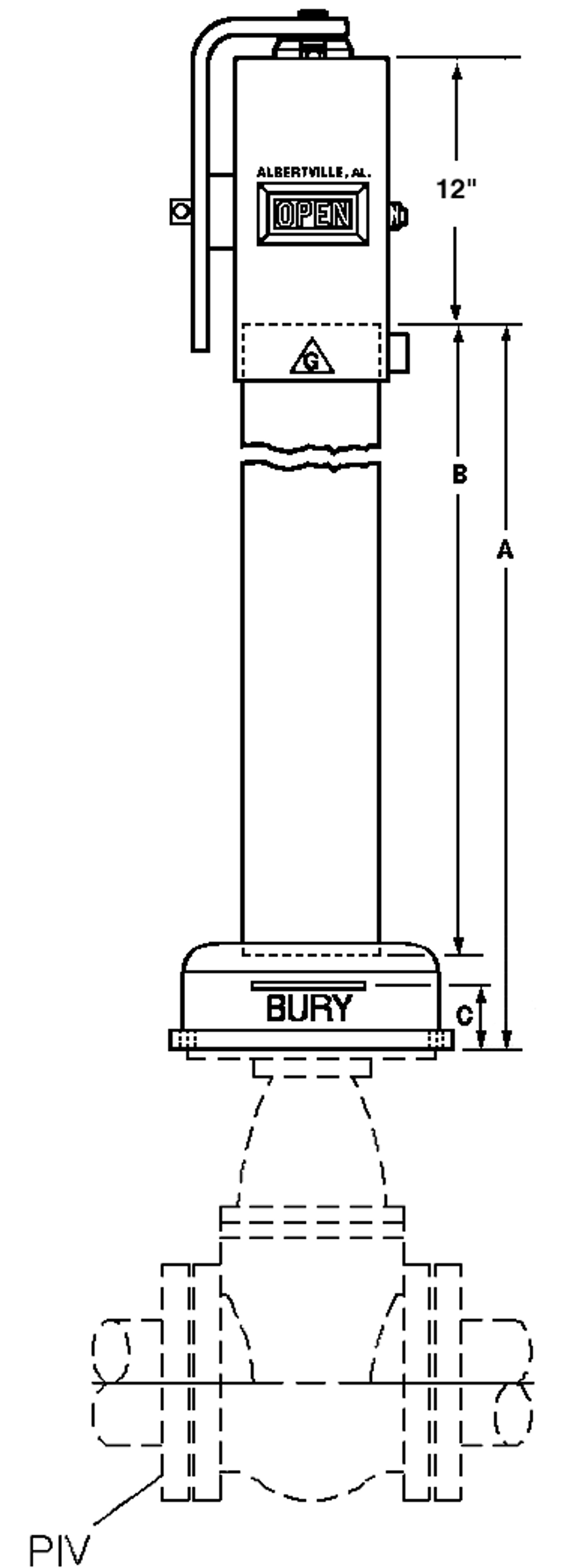

Bury Dimensions
|
Size No. |
A Dim |
B Dim |
C Dim |
|
0 |
26-5/8" |
24" |
2" |
|
1 |
32-5/8" |
30" |
8" |
|
2 |
38-5/8" |
36" |
14" |
|
Catalog Part No. |
Description |
Material |
Material Standard |
|
P206 |
SHUT Target |
Plastic |
Nylon |
|
P209 |
OPEN Target |
Plastic |
Nylon |
|
P217 |
Cotter Pin (short) |
Brass |
ASTM B21 |
|
P218 |
Coupling |
Steel |
ASTM A500 GR.B |
|
P219 |
Cotter Pin (long) |
Brass |
ASTM B21 |
|
P238 |
Bell and Barrel |
Ductile Iron/ Steel |
ASTM B536 GR.65-45-12 ASTM A500 GR.B |
|
P242 |
Retaining Ring |
Stainless Steel |
AISI 302 |
|
P244 |
Hex Bolt |
Steel/zinc plated |
ASTM A307 GR.A |
|
P248 |
Post Head |
Gray Iron |
ASTM A126 CL.B |
|
P303 |
Hex Nut |
Steel/zinc plated |
ASTM A563 GR.A |
|
P304 |
Operating Nut |
Ductile Iron |
ASTM A536 GR.65- 45-12 |
|
P305 |
Cap |
Plastic |
Polypropylene |
|
P307 |
Spring pin |
Stainless Steel |
AISI 420 |
|
P308 |
Threaded sleeve |
Aluminum |
Alloy 319 |
|
P309 |
Upper stem |
Steel |
ASTM A513 |
|
P315 |
Pipe plug - hex socket |
Steel |
|
|
P317 |
Window |
Plexiglass |
|
|
P325 |
Wrench |
Steel |
ASTM A36 HRS |
|
P326 |
Lower Stem |
Steel |
ASTM A500 GR.B |
|
P329 |
Socket head set screw |
Steel |
ANSI B18.3 |
|
P350 |
Coupling insert |
Steel |
ASTM A500 GR.B |
