U-20814: Wall Type Indicator Post

  • UL Listed
  • FM Approved

Full Line Catalog

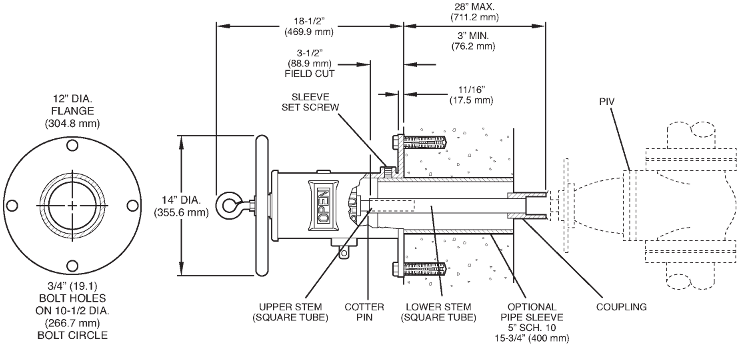

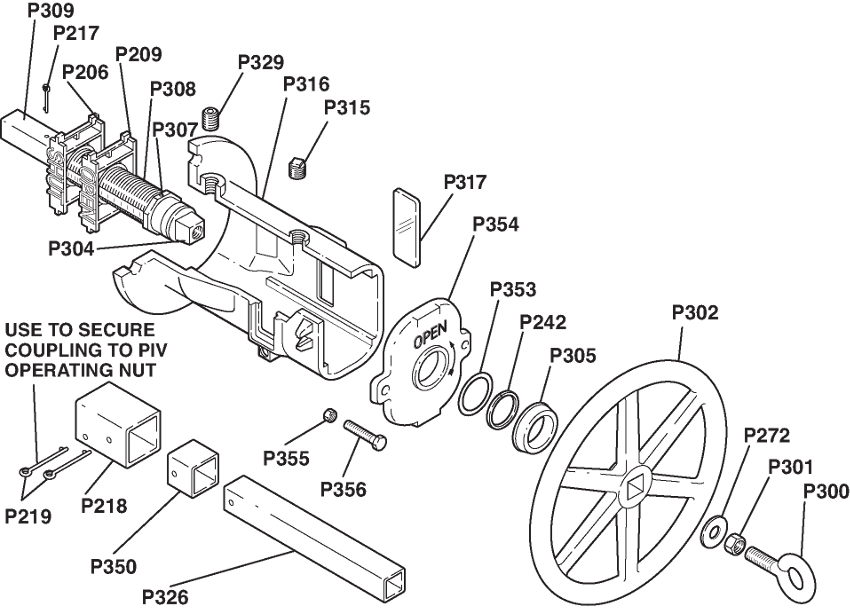

U-20814 Parts Drawing

Catalog Part No.

Description

Material

Material Standard

P206

Target Shut

Plastic

Nylon

P209

Target Open

Plastic

Nylon

P217

Cotter Pin (short)

Brass

ASTM B21

P218

Coupling

Steel

ASTM A500 GR.B

P219

Cotter Pin (long)

Brass

ASTM B21

P242

Retaining ring

Stainless Steel

AISI 302

P272

Washer

Steel/zinc plated



P300

Eye Bolt

Steel/zinc plated



P301

Hex Nut

Steel/zinc plated

ASTM A563 GR.A

P302

Handwheel

Ductile Iron

ASTM A536 GR.65- 45-12

P304

Operating Nut

Ductile Iron

ASTM A536 GR.65- 45-12

P305

Cap

Plastic

Polypropylene

P307

Spring pin

Stainless Steel

AISI 420

P308

Threaded sleeve

Plastic

Nylon

P309

Upper stem

Steel

ASTM A513

P315

Pipe plug - hex socket

Steel



P316

Post head

Gray Iron

ASTM A126 CL.B

P317

Window

Plexiglass



P326

Lower Stem

Steel

ASTM A500 GR.B

P329

Socket head set screw

Steel

ANSI B18.3

P350

Coupling insert

Steel

ASTM A500 GR.B

P354

Indicator Post Cover

Cast Iron

ASTM A126 CL.B

P355

Hex Nut 1/2"

Steel/zinc plated

ASTM A563 GR.B

P356

Hex Bolt 1/2"x1-3/4"

Steel/zinc plated

ANSI B18.2.1
