3-12 Inch A-USP1 RWGV MJxMJ
3-12 Inch A-USP1 RWGV MJxMJ
Catalog numbers:
- USP1-20 Mechanical joint ends (with accessories unassembled)
- USP1-23 Mechanical joint ends (less accessories)
- USP1-25 Mechanical joint ends (with transition gaskets accessories unassembled)
Specifications:
- Sizes – 3", 4", 6", 8", 10", 12"
- Non-rising stem (NRS)
- Meets or exceeds all applicable requirements of ANSI/AWWA C515*** Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
- Standard mechanical joint ends comply with ANSI/AWWA C111
- Nominal 10 mils Pro-Gard® Fusion Bonded Epoxy coated interior and exterior surfaces. Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
- Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
- Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- 2" square wrench nut–-open left or open right
- 350 psig (2400 kPa/24 barg) maximum working pressure, 700 psig (4800 kPa/48 barg) static test pressure
- UL Listed, FM Approved: 350 psig (2400 kPa/24 barg)
- Designed for potable water applications
Options*:
- Position indicators
- Stainless steel stem: Type 304, Type 316
- Low zinc, silicon bronze ASTM B98-C66100/H02 stem
- Handwheel
- EPDM Disc and O-rings
Resources:
- Operating Manual
- Product Specifications
- Suggested Specifications
- Installation Preparation Check List
- Submittal Drawing: (U7334)
- USPVH 350psi Resilient Wedge Gate Valve Brochure (Form 12954)
- Certification of Compliance: 3” - 12"
|

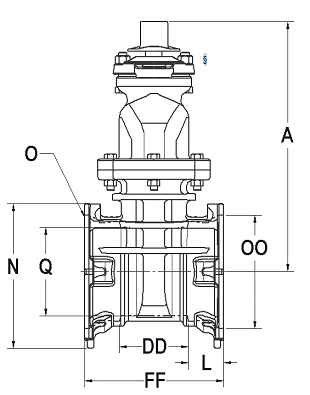

Dimension |
Nominal Size |
|||||
|
3" |
4" |
6" |
8" |
10" |
12" |
|
|
A |
12.38 |
14.19 |
18.00 |
21.50 |
25.50 |
28.62 |
|
FF |
9.62 |
9.50 |
10.00 |
10.50 |
11.50 |
12.00 |
|
L |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
|
N |
7.50 |
8.40 |
10.41 |
12.68 |
15.24 |
18.024 |
|
O (number and size of holes) |
4--.88 |
4--.88 |
6--.88 |
6--.88 |
8--.88 |
8--.88 |
|
DD |
4.62 |
4.50 |
5.00 |
5.50 |
6.50 |
7.00 |
|
Q |
3.30 |
4.30 |
6.30 |
8.30 |
10.30 |
12.30 |
|
OO (bolt circle diameter) |
6.19 |
7.50 |
9.50 |
11.75 |
14.00 |
16.25 |
|
Turns to open |
11 |
14 |
20.5 |
26.5 |
33.0 |
38.5 |
|
Weight* |
83 |
70 |
112 |
162 |
238 |
303 |
|

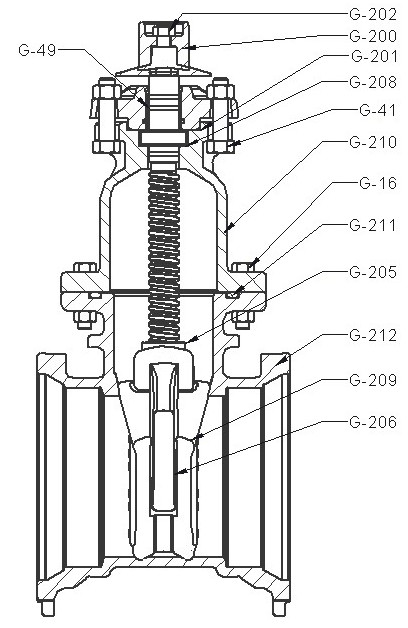

Catalog Part No. |
Description |
Material |
Material Standard |
|
G-16 |
Bonnet Bolts & Nuts |
316 Stainless Steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-41 |
Stuffing Box Bolts & Nuts |
316 Stainless Steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-49 |
Stem O-rings (3) |
Nitrile |
ASTM D2000 |
|
G-200 |
Wrench Nut Cap Screw |
316 Stainless Steel |
ASTM F593 |
|
G-201 |
Stuffing Box O-ring |
Nitrile |
ASTM D2000 |
|
G-202 |
Wrench Nut |
Ductile Iron |
ASTM A536 ▼ |
|
G-203 |
Stem |
Bronze |
ASTM B138 |
|
G-204 |
Hand Wheel (not shown) |
Cast Iron |
ASTM A126 CL.B |
|
G-205 |
Stem Nut |
Bronze |
ASTM B584 |
|
G-206 |
Guide Cap Bearings |
Acetal |
- |
|
G-207 |
Stuffing Box with dirt seal ++ |
Ductile Iron Nitrile |
ASTM A536 ▼ ASTM D200 |
|
G-208 |
Anti-friction Washers (2) |
Acetal |
- |
|
G-209 |
Wedge, Rubber Encapsulation |
Ductile Iron* SBR |
ASTM A536 ▼ ASTM D2000 |
|
G-210 |
Bonnet |
Ductile Iron |
ASTM A536 ▼ |
|
G-211 |
Bonnet O-ring +++ |
Nitrile |
ASTM D2000 |
|
G-212 |
Body |
Ductile Iron |
ASTM A536 ▼ |
+++ 3" valves use a bonnet gasket
*Fully encapsulated in molded rubber with no iron exposed
▼ Material strength ASTM A536 65-45 minimum ** 3" stuffing boxes are cast iron ASTM A126 class B+ *** 3" valves meet or exceed all applicable requirements of ANSI/AWWA C509 Standard
