4-12 Inch A-USP2 RWGV SLxFL

4-12 Inch A-USP2 RWGV SLxFL

Catalog numbers:

    • A-USP2-41 Slip-on end (with gasket) x flange end
    • A-USP2-43 Slip-on end (less gasket) x flange end

Specifications:

  • Sizes – 4", 6", 8", 10", 12"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
  • Slip-on ends fit plain end of classes 150, 200 and 250 cast iron, ductile iron and classes 150 and 200 cast iron O.D. PVC
  • Flanged end drilling complies with ASME/ANSI B16.1 class 125 and B16.42 class 150
  • Iron body with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron; Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut (optional handwheel available) – open left or open right
  • 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3450 kPa/35 barg) static test pressure
  • UL Listed, FM Approved: 250 psig (1725 kPa/17 barg)
  • Designed for potable water applications
††Field Lok is a trademark of U.S. Pipe and Foundry Company, used with permission.

Options*:

  • Position indicators
  • Stainless steel stem: Type 304, Type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • Handwheel
  • EPDM Disc and O-rings
*See Parts section below for more information on Resilient Wedge Gate Valve options.

Resources:

Full Line Catalog

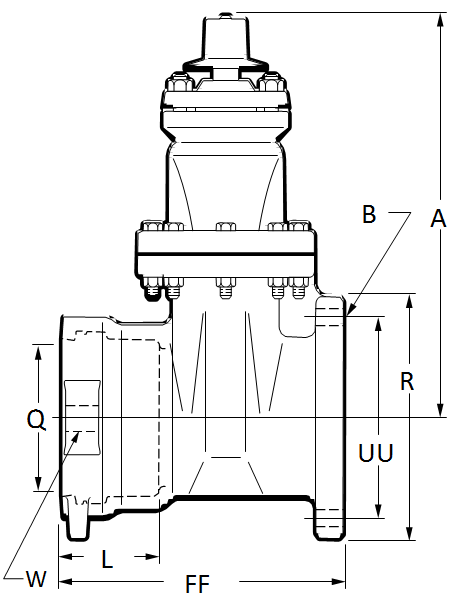

Dimension

Nominal Size

4"

6"

8"

10"

12"

A

14.19

18.00

21.50

25.50

28.62

Q (bore)

4.30

6.30

8.30

10.30

12.30

L

4.12

4.38

5.62

5.62

5.62

R

9.00

11.00

13.50

16.00

19.00

UU (bolt circle diameter for FL)

7.50

9.50

11.75

14.25

17.00

B (number and size of holes for FL)

8--.75

8--.88

8--.88

12--1.00

12--1.00

W (distance between strapping lug holes across face of valve ends)

8.62

10.62

13.12

16.38

18.12

FF

10.91

12.73

14.72

15.75

16.35

Turns to open

14

20.5

26.5

33

38.5

Weight*

98

152

244

366

489

*All dimensions are in inches. All weights are in pounds and are approximate.

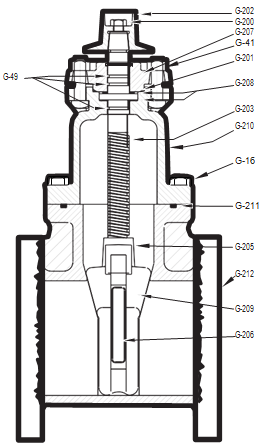

Catalog Part No.

Description

Material

Material Standard

 G-16

 Bonnet Bolts & Nuts

 316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

 G-41

 Stuffing Box Bolts & Nuts

 316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-200

Wrench Nut Cap Screw

316 Stainless Steel

ASTM F593

G-201

Stuffing Box O-ring

Nitrile

ASTM D2000

G-202

Wrench Nut

Ductile Iron

ASTM A536 ▼

G-203

Stem

Bronze

ASTM B138

G-204

Hand Wheel (not shown)

Cast Iron

ASTM A126 CL.B

G-205

Stem Nut

Bronze

ASTM B584

G-206

Guide Cap Bearings

Acetal

-

 G-207

 Stuffing Box with dirt seal

Ductile Iron Nitrile

ASTM A536 ▼ ASTM D2000

G-208

Anti-friction Washers (2)

Acetal

-

G-209

 Wedge, Rubber Encapsulation

Ductile Iron* SBR

ASTM A536 ▼ ASTM D2000

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet O-ring

Nitrile

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536 ▼

*Fully encapsulated in molded rubber with no iron exposed
▼ Material strength ASTM A536 65-45 minimum
