14-24 Inch P-USP1 RWGV PIV FLxFL

14-24 Inch P-USP1 RWGV PIV FLxFL

Catalog number: P-USP1-6

Specifications:

  • Flanged ends
  • Indicator Post Style Stuffing box
  • 2" Square Operating Nut
  • 14", 16", 18", 20" and 24" sizes
  • UL 262 listed, FM 1120/1130 Approved and certified to ANSI/NSF 61 & 372
  • Ductile iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Non-rising bronze stem
  • Rubber encapsulated iron wedge, no iron exposed
  • 14"-16" 250psig (1725 kPa/17 barg) maximum working pressure, 500psig (3400 kPa/34 barg) hydro static test
  • 18"-24" UL Listed 175psig (1200 kPa/12 barg) maximum working pressure, FM Approved, 250psig (1725 kPa/17 barg), 500psig (3450 kPa/35 barg) hydro static test
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • Epoxy coating meets or exceeds ANSI/AWWA C550
  • Flanged end drilling complies with ASME/ANSI B16.1 Class 125
  • Meets or exceeds all applicable requirements of ANSI/AWWA C515

Options:

  • Stainless steel fasteners: Type 316
  • Stainless steel stem: Type 304 and Type 316
  • ASTM B98-C66100/H02 stem
  • EPDM disc and O-rings (14"-16 option and 18"-24" standard)

Submittal Drawing          Full Line Catalog



P-USP1-6 FLxFL 14-24in Dimensions Drawing



Dimension*

Size

14"

16"

18"

20"

24"

A

32.75"

37.88"

44.19"

48.25"

53.88"

R

21.00"

23.50"

25.00"

27.50"

32.00"

FF

15.06"

16.06"

17.00"

18.00"

20.00"

E

12.00"

12.00"

12.00"

12.00"

12.00"

Q (bore)

14.38"

16.00"

18.35"

20.38"

24.38"

UU

18.75"

21.25"

22.75"

25.00"

29.50"

B (number and size of holes)

12-1.125"

16-1.125"

16-1.25"

20-1.25"

20-1.35"

Turns to open

43.5

49

57

63

75

Weight (lbs.)*

659

841

1298

1640

2488

*All dimensions are in inches. All weights are in approximate pounds.

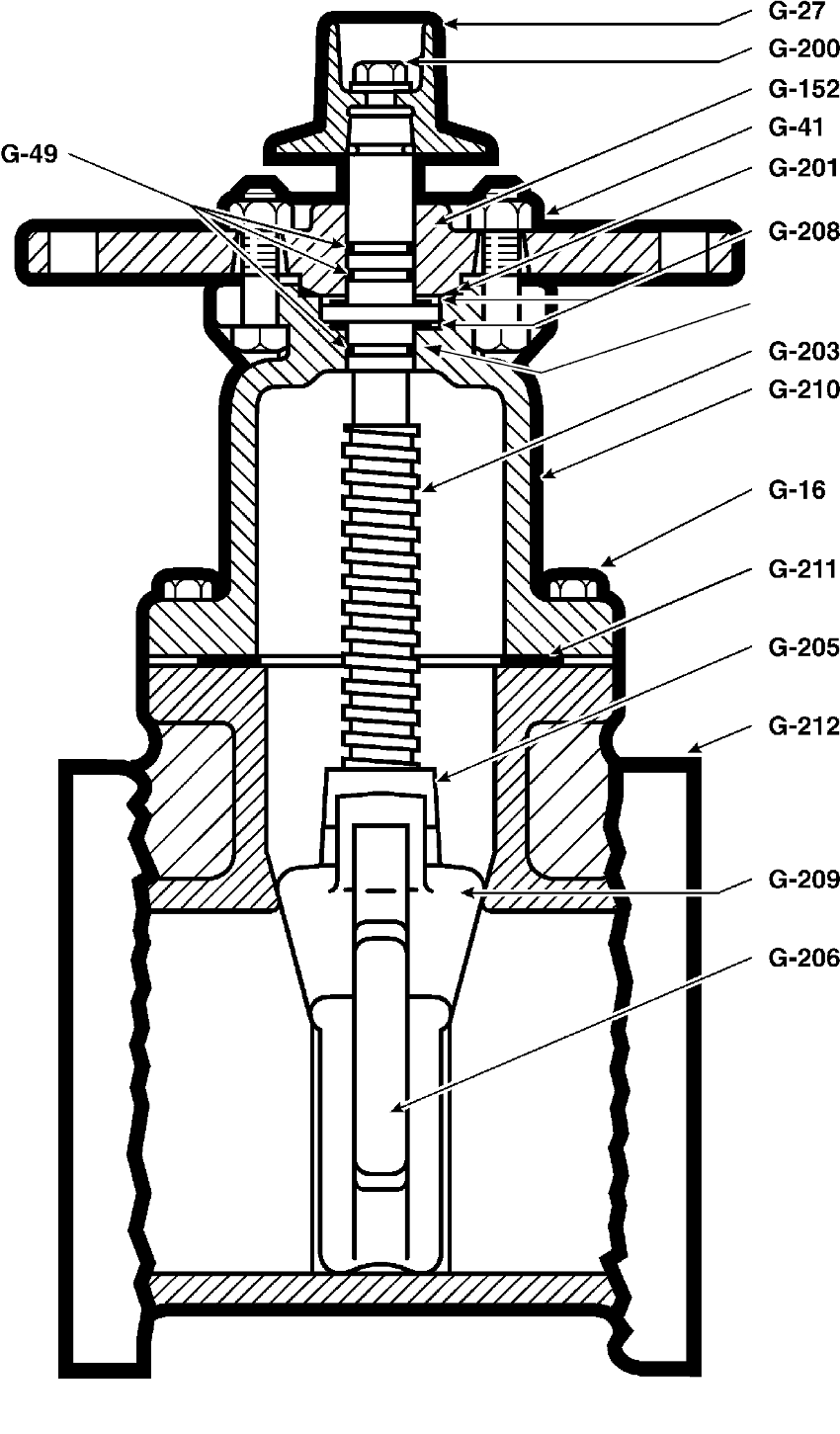

P-USP1-6 FLxFL 14-24in Parts Drawing

Catalog Part

Number

Description

Material

Material Standard

G-16

Bonnet Bolts & Nuts+++

Carbon Steel

ASTM A307 Grad B / Zinc Plated

G-27

Wrench Nut

Cast Iron

ASTM A126 CL.B

G-41

Stuffing Box Bolts & Nuts+++

Carbon Steel

ASTM A307 Grad B / Zinc Plated

G-49

Stem O-rings (3)

Nitrile+

ASTM D2000

G-152

Stuffing Box

Ductile Iron

ASTM A536 ▼

G-200

Wrench Nut Cap Screw+++

Carbon Steel

ASTM A307 Grad B / Zinc Plated

G-201

Stuffing Box Seal

Nitrile+

ASTM D2000

G-203

Stem

Bronze

ASTM B138***

G-205

Stem Nut

Bronze

ASTM B62

G-206

Guide Cap Bearings

Acetal

-

G-208

Anti-friction Washers (2)

Brass

ASTM B21

G-209

Wedge, Rubber Encapsulated

Ductile Iron**+

ASTM A536 ▼

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet O-ring

Nitrile+

ASTM D2000

G-220

Bonnet Bushings (18"-24")

Brass

ASTM B62

G-212

Body

Ductile Iron

ASTM A536 ▼

** Fully encapsulated in molded rubber with no iron exposed.
*** 18" - 24" ASTM B584
+ 14"-16", 18"-54" EPDM ASTM D2000
+++ 14"-16" valves are provided with 316 stainless steel fasteners as standard
▼ Material strength ASTM A536 65-45 minimum
