Catalog numbers:

  • P-USP2-16 (with M.J. Accessories*)
  • P-USP2-19 (less M.J. Accessories)

Specifications:

  • 4", 6", 8", 10" and 12" sizes
  • UL 262 Listed and FM 1120/1130 approved and certified to ANSI/NSF 61 & 372
  • Iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Non-rising bronze stem
  • Rubber encapsulated iron wedge
  • Mechanical joint ends comply with ANSI/AWWA C111
  • 250psig (1725 kPa/17 barg) maximum working pressure, 500psig (3450 kPa/35 barg) static test pressure
  • Triple O-ring seal (2 above the thrust collar and 1 below)
  • Epoxy coating meets or exceeds all applicable requirements ANSI/AWWA C550
  • Flanged end drilling complies with ASME/ANSI
    B16.1 class 125 and B16.42 class 150***
  • Meets or exceeds all applicable requirements of ANSI/AWWA C515

Options:

  • Stainless steel stem: Type 304 and Type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • EPDM disc and O-rings

Full Line Catalog

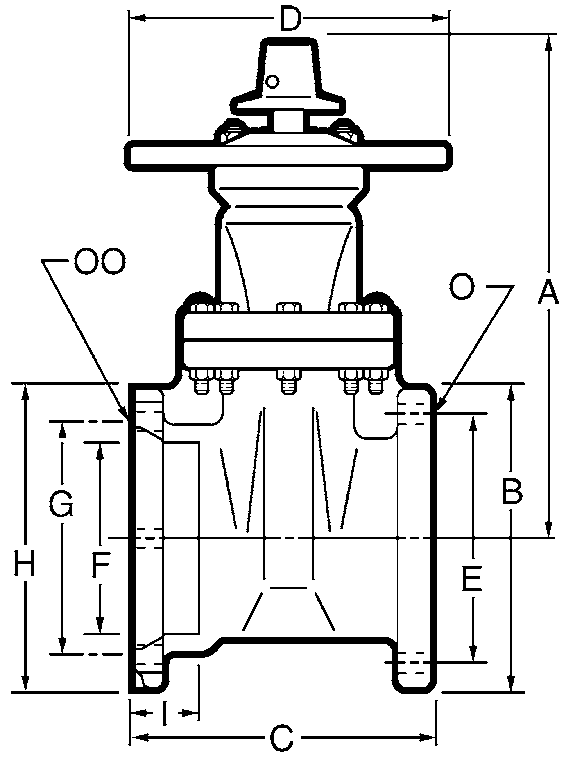

Dimension*

Size

4"

6"

8"

10"

12"

A

14.19

18.00

21.50

25.50

28.62

R

9.00

11.00

13.50

16.00

19.00

FF

9.50

11.06

12.09

13.94

14.50

E

12.00

12.00

12.00

12.00

12.00

UU (bolt circle for FL)

7.50

9.50

11.75

14.25

17.00

Q (bore)

4.30

6.30

8.30

10.30

12.30

OO (bolt circle for MJ)

7.50

9.50

11.75

14.00

16.25

N

9.12

11.12

13.37

15.62

17.88

L

2.50

2.50

2.50

2.50

2.50

B (number and size of holes for FL)

8--.75"

8--.88"

8--.88"

12--1.00"

12--1.00"

O (bolt circle diameter for MJ)

4--.88"

6--.88"

6--.88"

8--.88"

8--.88"

Turns to opem

14

20.5

26.5

33

38.5

Weight (lbs.)*

120

172

271

399

529

*All dimensions are in inches. All weights are in approximate pounds.

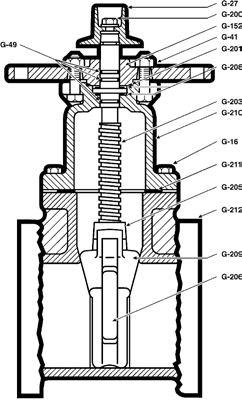

Catalog Part

 Number

Description

Material

Material Standard

G-16

Bonnet Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt)/ASTM F594 (nut)

G-27

Wrench Nut

Ductile Iron

ASTM A536 ▼

G-41

Stuffing Box Bolts and Nuts

316 Stainless Steel

ASTM F593 (bolt)/ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-152

Stuffing Box

Ductile Iron

ASTM A536 ▼

G-200

Wrench Nut Cap Screw

316 Stainless Steel

ASTM F593

G-201

Stuffing Box with dirt seal

Nitrile

ASTM D2000

G-203

Stem

Bronze

ASTM B138

G-205

Stem Nut

Bronze

ASTM B584

G-206

Guide Cap Bearings

Acetal

-

G-208

Anti-friction Washers (2)

Acetal

-

G-209

Wedge/Rubber Encapsulated

Ductile Iron**

ASTM A536 ▼

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet O-ring

Nitrile

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536 ▼

+ MJ accessories are included and palletized separately from valves.
**Fully encapsulated in molded rubber with no iron exposed.
▼ Material strength ASTM A536 65-45 minimum
*** Per ANSI/AWWA C111 working pressure above 250psi requires the use of a special gasket rated for higher pressure.
