OS&Y RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS 14-24"
OS&Y RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS 14-24"
The valves on this page are UL listed only.
R-2361-6: O.S.&Y. RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS
Specifications:
- 14", 16", 18", 20" and 24" sizes
- UL 262 listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
- Iron body with Mueller® PRO-GARD® Fusion Epoxy Coated interior and exterior surfaces
- EPDM encapsulated DI wedge
- Adjustable packing
- Handwheel - open left or right
- 14"-16" - 250 psig (1725/17 barg) maximum working pressure - 500 psig (3450 kPa/35 barg) static test
- 18"-24" - UL Listed 175 psig (1200 kPa/12 barg) maximum working pressure, FM Approved 250psig (1725 kPa/17 barg) - 500 psig (3450 kPa/35 barg) static test
- Epoxy coating meets or exceeds all applicable requirements ANSI/AWWA C550
- Bevel & spur gear drive available
- Outside Screw & Yoke (OS&Y)
- Flanged end drilling complies with ASME/ANSI
B16.1 class 125 and B16.42 class 150 - Meets or exceeds all applicable requirements of ANSI/AWWA C515
Options:
- Stainless steel stem: Type 304, 316 or 431
- Low zinc, silicon bronze ASTM B98-C66100/H02 stem
- EPDM disc and o-rings (14"-16 option and 18"-24" standard)
Resources:
|
Dimension* |
Size |
||||
|
14" |
16" |
18" |
20" |
24" |
|
|
A |
64.09 |
71.19 |
85.68 |
93.50 |
104.40 |
|
AA |
49.13 |
54.63 |
65.88 |
71.50 |
79.89 |
|
E |
18.00 |
18.00 |
32.00 |
32.00 |
32.00 |
|
R |
21.00 |
23.50 |
25.00 |
27.50 |
32.00 |
|
FF |
15.06 |
16.06 |
17.00 |
18.00 |
20.00 |
|
UU |
18.75 |
21.25 |
22.75 |
25.00 |
29.50 |
|
FFF (number and size of holes) |
12--1.12" |
16--1.12" |
16--1.25" |
20--1.25" |
20--1.38" |
|
Turns to open |
43.5 |
49 |
57 |
63 |
75 |
|
Weight (lbs.)* |
775 |
984 |
1657 |
2239 |
2899 |

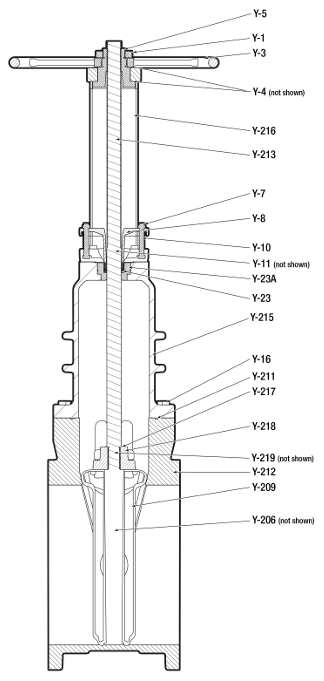

| Catalog Part Number | Description | Material | Material Standard |
| Y-1 | Cap Nut | Bronze | ASTM B62 |
| Y-3 | Hand Wheel | Ductile Iron | ASTM A536 ▼ |
| Y-4 | Washer | Brass | ASTM B36 |
| Y-5 | Bush Nut | Bronze | ASTM B584 |
| Y-7 | Gland Nuts | Silicon | ASTM B98 |
| Y-8 | Packing Gland | Ductile Iron | ASTM A536 ▼ |
| Y-10 | Gland Bolts | 316 Stainless steel | ASTM F593 |
| Y-11 | Yoke Bolts and Nuts | 316 Stainless steel | ASTM F593 (bolt) / ASTM F594 (nut) |
| Y-16 | Bonnet Bolts and Nuts | 316 Stainless steel | ASTM F593 (bolt) / ASTM F594 (nut) |
| Y-23 | Stem Packing | Lubricated Flax | - |
| Y-206 | Guide Cap Bearings | Acetal | - |
| Y-209 | Wedge/Rubber Encapsulated | Ductile Iron** | ASTM A536 ▼ |
| Y-211 | Bonnet O-ring | EPDM | ASTM D2000 |
| Y-212 | Body | Ductile Iron | ASTM A536 ▼ |
| Y-213 | Stem | Mandanese | ASTM B138 |
| Y-215† | Bonnet | Ductile Iron | ASTM A536 ▼ |
| Y-16† | Yoke | Ductile Iron | ASTM A536 ▼ |
| Y-217 | O-ring | EPDM | ASTM D2000 |
| Y-218 | Disc Nut | Bronze | ASTM B62 |
| Y-219 | Stem Nut Pin | Stainless Steel | Type 304 |
| Y-23A | Bonnet Bushing | Bronze | ASTM B62 |
| Y-230 | Eye Bolts and Nuts | Steel | Forged ASTM A563 |
†Two-piece bonnet & yoke.
▼ Material strength ASTM A536 65-45 minimum
+ 14"-16" valves are provided with 316 stainless steel fasteners as standard
