OS&Y RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS 2-3"

OS&Y RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS 2-3"

R-USP1-6: O.S.&Y. resilient wedge gate valve with flanged ends

Specifications:

  • 2", 2-1/2", 3" SIZES
  • UL 262 listed and FM 1120/1130 approved and certified to ANSI/NSF 61 & 372
  • Ductile iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Outside Screw & Yoke (OS&Y)
  • Rubber encapsulated iron wedge, no iron exposed
  • Adjustable packing
  • Handwheel – open left or open right
  • 250psig (1725 kPa/17 barg) maximum working pressure - 500psig (3450 kPa/35 barg) static test
  • Epoxy coating meets or exceeds ANSI/AWWA C550.
  • Flanged end drilling complies with ASME/ANSI
    B16.1 class 125 and B16.42 class 150
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509 & C515

Options:

  • Stainless steel stem: Type 304 and Type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • EPDM disc and O-rings

Submittal Drawing          Full Line Catalog

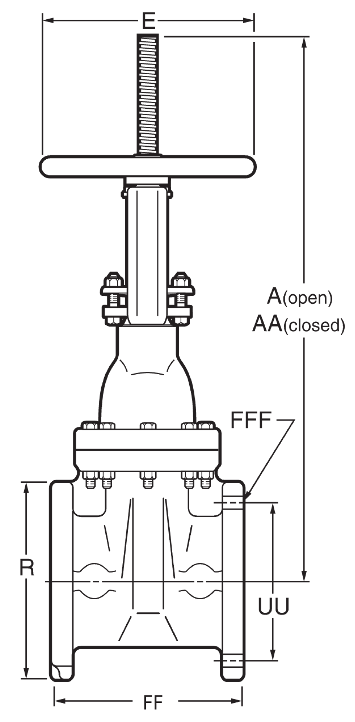

Dimension*

Size



2"

2-1/2"

3"

A

16.69"

 20.33"

20.16"

AA

14.09"

16.53"

16.32"

E

7.00"

7.00"

7.00"

R

6.00"

7.00"

7.50"

FF

7.00"

7.50"

8.00"

UU

4.75"

5.50"

6.00"

FFF (number and size of holes)

4-0.625"

4--.75"

4--.75"

Turns to open

8.50"

11

11

Weight (lbs.)*

41

50

52

NOTE: Flanged end dimensions and drilling comply with ANSI B16.1, class 125.
*All dimensions are in inches. All weights are in pounds and are approximate.

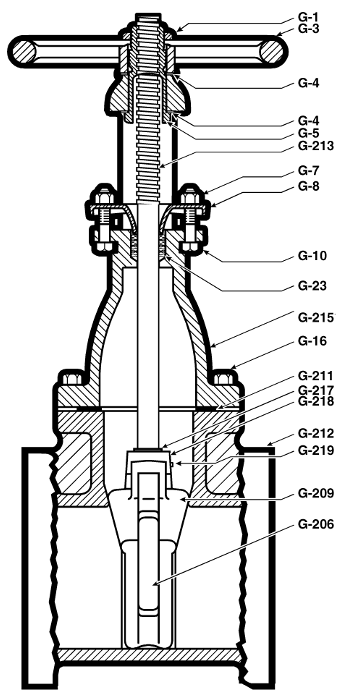

Catalog Part Number

Description

Material

Material Standard

G-1

Cap Nut

Bronze

ASTM B62/B584

G-3

Hand Wheel

Ductile Iron

ASTM A536

G-4

Washer

Brass

-

G-5

Bush Nut

Bronze

ASTM B562

G-7

Gland Nut

Bronze

ASTM B98

G-8

Packing Gland

Ductile Iron

ASTM A536

G-10

Gland Bolt

316 Stainless Steel

ASTM F593

G-16

Bonnet Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt) / ASTM F594 (nut)

G-23

Stem Packing

Lubricated Flax

-

G-206

Guide Cap Bearings

Acetal

-

G-209

Wedge, Rubber Encapsulated

Cast Iron**++

ASTM A126 CL.B

G-211

Bonnet Gasket

EPDM

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536

G-213

Stem

Bronze

ASTM B138

G-215

Bonnet & Yoke

Ductile Iron

ASTM A536

G-217

O-ring

Nitrile

ASTM D2000

G-218

Disc Nut

Bronze

ASTM B584

G-219

Stem Nut Pin

Stainless Steel

Type 304

NOTE: Flanged end dimensions and drilling comply with ANSI B16.1, class 125.
**Fully encapsulated in molded rubber with no iron exposed.
