R-USP1: O.S.&Y. RESILIENT WEDGE GATE VALVE WITH FLANGE ENDS

Specifications:

  • 4", 6", 8", 10" and 12" sizes
  • UL 262 listed and FM 1120/1130 approved and certified to ANSI/NSF 61 & 372
  • Iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Outside Screw & Yoke (OS&Y)
  • Adjustable packing
  • Rubber encapsulated iron wedge
  • Handwheel – open left or open right
  • 350psig (2400 kPa/24 barg) maximum working pressure - 700psig (4800 kPa/48 barg) static test
  • Epoxy coating meets or exceeds ANSI/AWWA C550
  • Flanged end drilling complies with ASME/ANSI
    B16.1 class 125 and B16.42 class 150***
  • Meets or exceeds all applicable requirements of ANSI/AWWA C515

Options:

  • Stainless steel stems: Type 304, 316, or 431
  • ASTM B98-C66100/H02 stem
  • PN10/PN16 drilling
  • EPDM disc and O-rings

Submittal Drawing          Full Line Catalog

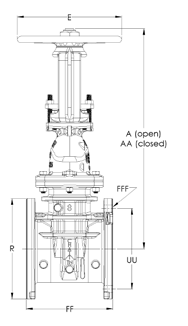

Dimension*

Size

4"

6"

8"

10"

12"

A

23.63"

30.00"

37.37"

47.00

53.50

AA

18.94"

23.22"

28.60"

35.75

40.50

E

10.00"

12.00"

14.00"

16.00

16.00

R

9.00"

11.00"

13.50"

16.00

19.00

FF

9.00"

10.50"

11.50"

13.00

14.00

UU

7.50"

9.50"

11.75"

14.25

17.00

FFF (number and size of holes)

8--.75"

8--.88"

8--.88"

12--1.00

12--1.00

Turns to open

14

20.5

26.5

33

38.5

Weight (lbs.)*

96

150

230

348

477

*All dimensions are in inches. All weights are in pounds and are approximate.

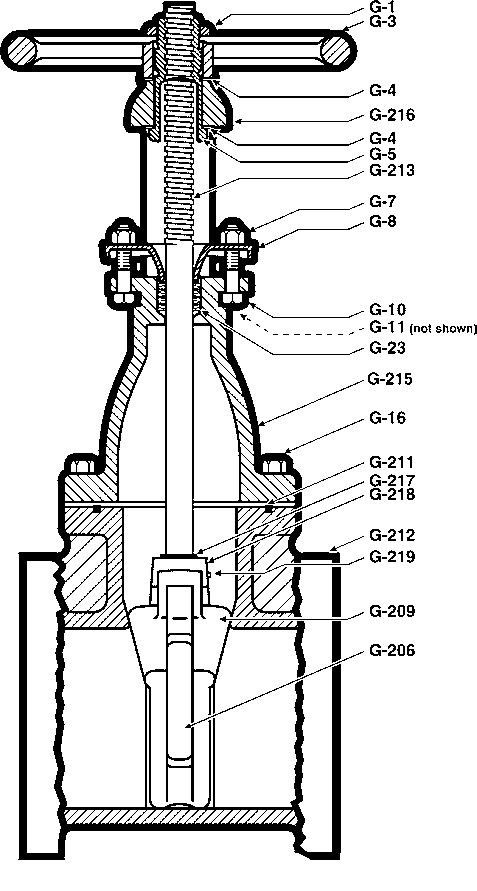

Catalog Part Number

Description

Material

Material Standard

G-1

Cap Nut

Bronze

ASTM B62

G-3

Hand Wheel

Ductile Iron

ASTM A536 ▼

G-4

Washer

Brass

ASTM B36

G-5

Bush Nut

Bronze

ASTM B62

G-7

Gland Nut

Bronze

ASTM B98

G-8

Packing Gland

Ductile Iron

ASTM A536 ▼

G-10

Gland Bolts

316 Stainless steel

ASTM F593

G-16

Bonnet Bolts and Nuts

316 Stainless steel

ASTM F593 (bolt)/F594 (nut)

G-23

Stem Packing

Lubricated Flax

-

G-206

Guide Cap Bearings

Acetal

-

G-209

Wedge/Rubber Encapsulated

Ductile Iron**

ASTM A536 ▼

G-211

Bonnet O-ring

Nitrile

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536 ▼

G-213

Stem

Bronze

ASTM B138

G-215†

Bonnet

Ductile Iron

ASTM A536 ▼

G-216†

Yoke

Cast Iron

ASTM A536 ▼

G-217

O-ring

Nitrile

ASTM D2000

G-218

Disc Nut

Bronze

ASTM B584

G-219

Stem Nut Pin

Stainless Steel

Type 304

**Fully encapsulated in molded rubber with no iron exposed.
+ Manufacturer's option to upgrade material to Ductile iron ASTM A536
▼ Material strength ASTM A536 65-45 minimum
*** Per ANSI/AWWA C111, working pressure above 250psi requires the use of a special gasket rated for the higher pressure.
