OS&Y RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS 4-12"
OS&Y RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS 4-12"
R-2361
Specifications:
- 4", 6", 8", 10" and 12" sizes
- UL 262 listed and FM 1120/1130 approved and certified to ANSI/NSF 61 & 372
- Iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
- Outside Screw & Yoke (OS&Y)
- Adjustable packing
- Rubber encapsulated iron wedge
- Handwheel – open left or open right
- 250psig (1725 kPa/17 barg) maximum working pressure - 500psig (3450 kPa/35 barg) static test
- Epoxy coating meets or exceeds all applicable requirements ANSI/AWWA C550
- Flanged end drilling complies with ASME/ANSI B16.1 Class 125
- Meets or exceeds all applicable requirements of ANSI/AWWA C509
Options:
- Stainless steel stem: Type 304, 316 or 431
- ASTM B98-C66100/H02 stem
- EPDM disc and O-rings
- PN10/PN16 drilling
Resources:
|

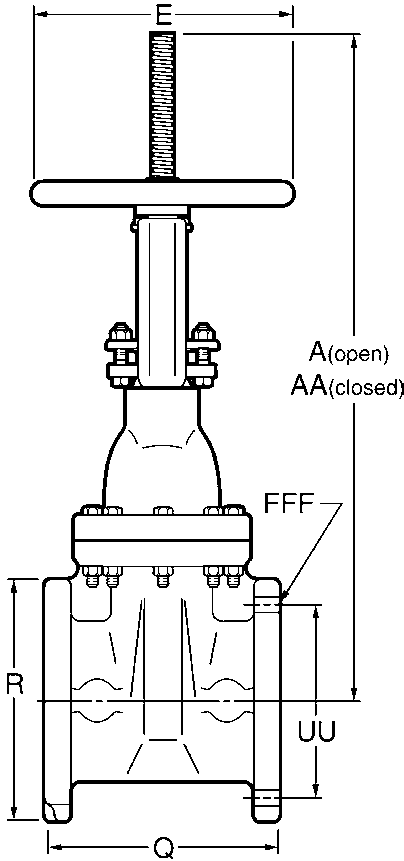

Dimension* |
Size |
||||
|
4" |
6" |
8" |
10" |
12" |
|
|
A |
23.63 |
30.00 |
37.37 |
47.00 |
53.50 |
|
AA |
18.94 |
23.22 |
28.60 |
35.75 |
40.50 |
|
E |
10.00 |
12.00 |
14.00 |
16.00 |
16.00 |
|
R |
9.00 |
11.00 |
13.50 |
16.00 |
19.00 |
|
FF |
9.00 |
10.50 |
11.50 |
13.00 |
14.00 |
|
UU |
7.50 |
9.50 |
11.75 |
14.25 |
17.00 |
|
FFF (number and size of holes) |
8--.75 |
8--.88 |
8--.88 |
12--1.00 |
12--1.00 |
|
Turns to open |
14 |
20.5 |
26.5 |
33 |
38.5 |
|
Weight (lbs.)* |
120 |
181 |
287 |
448 |
596 |
|

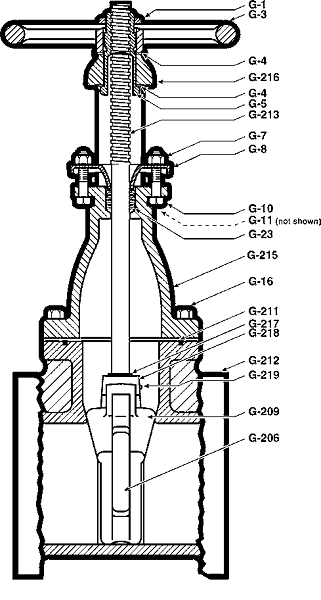

Catalog Part Number |
Description |
Material |
Material Standard |
|
G-1 |
Cap Nut |
Bronze |
ASTM B62 |
|
G-3 |
Hand Wheel |
Ductile Iron |
ASTM A536 ▼ |
|
G-4 |
Washer |
Brass |
ASTM B36 |
|
G-5 |
Bush Nut |
Bronze |
ASTM B62 |
|
G-7 |
Gland Nut |
Bronze |
ASTM B98 |
|
G-8 |
Packing Gland |
Ductile Iron |
ASTM A536 ▼ |
|
G-10 |
Gland Bolts |
316 Stainless steel |
ASTM F593 |
|
G-16 |
Bonnet Bolts and Nuts |
316 Stainless steel |
ASTM F593 (bolt)/F594 (nut) |
|
G-23 |
Stem Packing |
Lubricated Flax |
- |
|
G-206 |
Guide Cap Bearings |
Acetal |
- |
|
G-209 |
Wedge/Rubber Encapsulated |
Ductile Iron** |
ASTM A536 ▼ |
|
G-211 |
Bonnet O-ring |
Nitrile |
ASTM D2000 |
|
G-212 |
Body |
Ductile Iron |
ASTM A536 ▼ |
|
G-213 |
Stem |
Bronze |
ASTM B138 |
|
G-215† |
Bonnet |
Ductile Iron |
ASTM A536 ▼ |
|
G-216† |
Yoke |
Cast Iron |
ASTM A536 ▼ |
|
G-217 |
O-ring |
Nitrile |
ASTM D2000 |
|
G-218 |
Disc Nut |
Bronze |
ASTM B584 |
|
G-219 |
Stem Nut Pin |
Stainless Steel |
Type 304 |
† Two-piece bonnet & yoke
▼ Material strength ASTM A536 65-45 minimum
