14-24 Inch I-USP1 Tapping Valve MJxFL
14-24 Inch I-USP1 Tapping Valve MJxFL
I-USP1-19
Specifications:
- Flanged x Mechanical Joint Ends
- Indicator Post Style Stuffing box
- 2" Square Operating Nut
- 14", 16", 18", 20" and 24" sizes
- UL 262 listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
- Iron body with Mueller® Pro-Gard® Fusion Bonded Epoxy Coated interior & exterior surfaces
- Non-rising bronze stem
- Rubber encapsulated iron wedge
- 14"-16" 250psig (1725 kPa/17 barg) maximum working pressure, 500psig (3450 kPa/35 barg) hydro static test
- 18"-24" UL Listed 175psig (1200 kPa/12 barg) maximum working pressure, FM Approved, 250psig (1725 kPa/17 barg), 500 psig (3450 kPa/35 barg) hyrdo static test
- Triple O-ring seal (2 above the thrust collar and 1 below)
- Epoxy coating meets or exceeds all applicable requirements ANSI/AWWA C550
- Flanged end drilling complies with ASME/ANSI B16.1 Class 125
- Meets or exceeds all applicable requirements of ANSI/AWWA C515
Options:
- ASTM B98-C66100/H02 stem
- Stainless steel stem: TYPE 304 and 316
- EPDM disc and o-rings (14"-16" option and 18"-24" standard)
- Stainless steel fasteners: Type 316
|

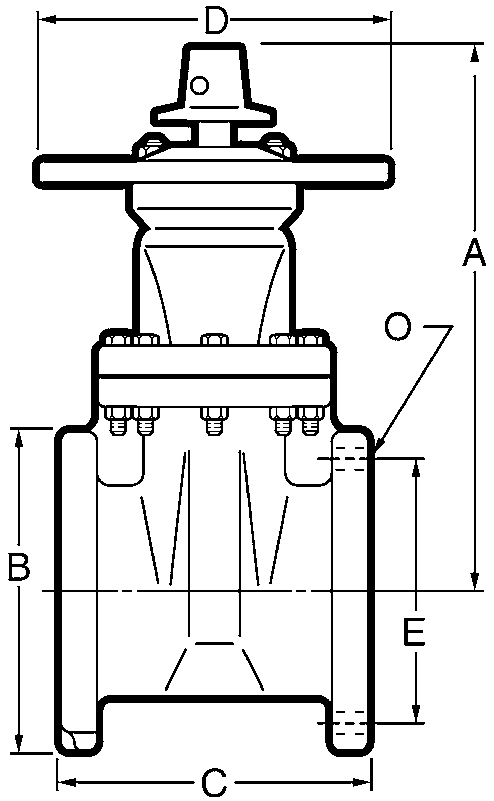

Dimension* |
Size |
||||
|
14" |
16" |
18" |
20" |
24" |
|
|
A |
32.75" |
37.88" |
44.19" |
48.25" |
53.88" |
|
R |
21.00" |
23.50" |
25.00" |
27.50" |
32.00" |
|
FF |
15.06" |
16.06" |
17.00" |
18.00" |
20.00" |
|
E |
12.00" |
12.00" |
12.00" |
12.00" |
12.00" |
|
Q (bore) |
14.38" |
16.00" |
18.35" |
20.38" |
24.38" |
|
UU |
18.75" |
21.25" |
22.75" |
25.00" |
29.50" |
|
B (number and size of holes) |
12-1.125" |
16-1.125" |
16-1.25" |
20-1.25" |
20-1.35" |
|
Turns to open |
43.5 |
49 |
57 |
63 |
75 |
|
Weight (lbs.)* |
659 |
841 |
1298 |
1640 |
2488 |
|

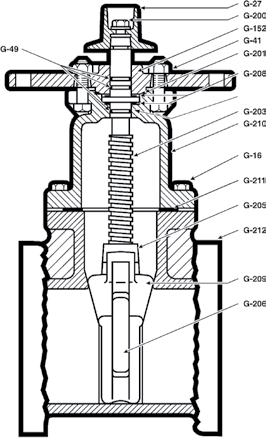

Catalog Part No. |
Description |
Material |
Material Standard |
|
G-16 |
Bonnet Bolts & Nuts |
316 Stainless Steel |
ASTM F593 (bolt) F594 (nut) |
|
G-27 |
Wrench Nut |
Cast Iron++ |
ASTM A126 CL.B |
|
G-41 |
Stuffing Box Bolts & Nuts |
316 Stainless Steel |
ASTM F593 (bolt) F594 (nut) |
|
G-49 |
Stem O-rings (3) |
Nitrile+ |
ASTM D2000 |
|
G-152 |
Stuffing Box |
Ductile Iron |
ASTM A536 ▼ |
|
G-200 |
Wrench Nut Cap Screw |
316 Stainless Steel |
ASTM F593 |
|
G-201 |
Stuffing Box Seal |
Nitrile+ |
ASTM D2000 |
|
G-203 |
Stem |
Bronze |
ASTM B138*** |
|
G-205 |
Stem Nut |
Bronze |
ASTM B62 |
|
G-206 |
Guide Cap Bearings |
Acetal |
- |
|
G-208 |
Anti-friction Washers (2) |
Brass |
ASTM B21 |
|
G-209 |
Wedge, Rubber Encapsulated |
Ductile Iron**+ |
ASTM A536 ▼ |
|
G-210 |
Bonnet |
Ductile Iron |
ASTM A536 ▼ |
|
G-211 |
Bonnet O-ring |
Nitrile+ |
ASTM D2000 |
|
G-220 |
Bonnet Bushings (18"-24") |
Brass |
ASTM B62 |
|
G-212 |
Body |
Ductile Iron |
ASTM A536 ▼ |
*** 18" - 24" ASTM B584
+ 14"-16", 18"-54" EPDM ASTM D2000
++ Manufacturer's option to upgrade material to Ductile iron ASTM A536
+++ 14"-16" valves are provided with 316 stainless steel fasteners as standard
▼ Material strength ASTM A536 65-45 minimum
