14-48 Inch T-USP1 Tapping Valve MJxFL

public://uploads/product/t-2361_gate_valve_mj_fl_bw_img.png

14-48 Inch T-USP1 Tapping Valve MJxFL

Catalog numbers:

  • T-USP1-16 mechanical joint x flanged ends (with mechanical joint unassembled accessories)
  • T-USP1-19 mechanical joint x flanged ends (less mechanical joint accessories)

Specifications:

  • Size-- 14", 16"††, 18", 20", 24", 30", 36", 42", 48"
  • Certified to ANSI/NSF 61 & 372 standard
  • Inlet flange complies with ASME/ANSI B16.1 Class 125 drilling and with MSS SP-60.
  • Mechanical joint end complies with ANSI/AWWA C111 Standard
  • Ductile iron body with nominal 10 mils Pro-GardTM Fusion Bonded Epoxy Coated interior and exterior surfaces; 42" thru 48" valves coated with HP epoxy.
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
  • Ductile iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron.
  • Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut – open left or open right 36"-48" require a Spur Gear or Beval Gear
  • 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3400 kPa/34 barg) static test pressure
  • 14" and 16" UL Listed/FM Approved: 250 psig (1725 kPa/17 barg)
  • 18", 20" and 24" sizes – UL Listed 175 psig (1200 kPa/12 barg); FM Approved 250 psig (1725 kPa/17 barg)
  • Designed for potable water applications.

Options:

  • Low zinc, silicon bronce ASTM B98-C66100/H02 stem; 14"-16" and ASTM B763-C99500; 18"-48"
  • Position indicators
  • Spur or Bevel Geared actuator
  • Stainless steel stem: Type 304, Type 316
  • Bypass 18"- 48" (2" on 18"-20"; 2.5 on 24"; 3" on 30"-48") and ASTM B763-C99500; 18"-36"
  • Bypass 3" on 30"-36"; 4" on 42"-48"
  • EPDM disc and O-rings (14"-16" option, 18"-48" standard)

 Resources:

  • Submittal Drawing: 16" - 36" Tapping valve w/bevel gearing (U6743 REV F)
  • Submittal Drawing: 16" - 36" Tapping valve w/bevel gearing and 304 SS fasteners (U6862 REV 0)
  • Submittal Drawing: 42" Tapping valve (U536559)
  • Submittal Drawing: 48" Tapping valve (U536570)

Full Line Catalog

T-2361 Gate Valve MJ FL Dimensions Drawing



Dimensions*

Nominal Size

14"

16"

18"

20"

24"

30"†

36"†

42"†

48"†

A

32.75

37.88

44.19

48.25

53.88

See A for spur or bevel gear

D

15.25

17.25

19.47

21.47

25.47

30.94

36.94

43.44

49.44

L

3.50

3.50

3.50

3.50

3.50

4.00

4.00

4.00

4.00

N

20.25

22.56

24.76

27.25

31.51

39.53

46.41

53.53

60.41

O (number and size of holes for MJ)

10--.88

12--.88

12--.88

14--.88

16--.88

20--1.25

24--1.25

28--1.38

32--1.38

Q (bore)

14.38

16.00

18.38

20.38

24.38

30.38

36.38

42.38

48.38

OO (bolt circle diameter for MJ)

18.75

21.00

23.25

25.50

30.00

36.88

43.75

50.62

57.50

R

21.00

23.50

25.00

27.50

32.00

38.75

46.00

53.00

59.50

UU (bolt circle diameter for FL)

18.75

21.25

22.75

25.00

29.50

36.00

42.75

49.50

56.00

FF

17.41

17.91

19.25

19.75

21.75

29.75

33.75

40.38

43.79

B

12--1.12

16--1.12

16--1.25

20--1.25

20--1.38

28--1.38

32--1.63

36--1.63

44--1.63

A - spur gear

38.50

43.58

49.41

53.01

59.51

70.81

83.08

97.84

109.70

A - bevel gear**

34.00

37.38

44.50

47.69

54.06

64.93

77.19

90.75

102.61

Turns to open (without gearing)

43.5

48

57

63

75

-

-

-

-

Turns to open (spur gearing)

178

201

234

258

308

381

455

524

596

Turns to open (bevel gearing)

174

196

228††

252††

300††

372

444

524

596

Weight*

655

875

1226

1500

2375

5100

8400

13300

19700

*All dimensions are in inches. All weights are in pounds and are approximate. Weights for 30"-48" valves are with gearing; for all others without gearing.
**Center line of operating nut to center line of valve.
†Spur or Bevel Gear must be used with 30", 36", 42", 48" valves.
††Turns shown for bevel gearing. All sizes 4:1 ratio.

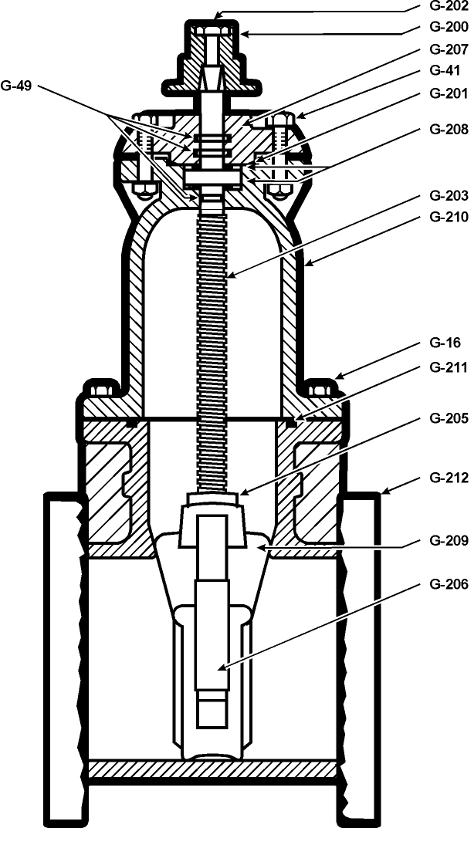

T-2361 Gate Valve MJ FL Parts Drawing

Resilient wedge gate valve parts

Catalog Part Number

Description

Material

Material standard

G-16

Bonnet bolts and nuts***

316 Stainless steel

ASTM F593 (bolt)
ASTM F594 (nut)

G-41

Stuffing box bolts and nuts***

316 Stainless steel

ASTM F593 (bolt)
ASTM F594 (nut)

G-49

Stem O-rings (3)†

Nitrile †

ASTM D2000

G-200

Wrench nut cap screw

316 Stainless steel

ASTM F594

G-201

Stuffing box O-ring seal†

Nitrile

ASTM D2000

G-202

Wrench nut

Cast Iron+++

ASTM A126 CL.B

G-203

Stem

Bronze

ASTM B138**

G-204

Handwheel (not shown)

Cast Iron

ASTM A126 CL.B

G-205

Stem nut

Bronze

ASTM B62

G-206

Guide cap bearings

Acetal

-

G-207

Stuffing box

Ductile Iron

ASTM A536 ▼

G-208

Anti-friction washer (2)

Acetal

-

G-209

Wedge

Rubber encapsulated

Ductile Iron* SBR†

ASTM A536 ▼ ASTM D2000

G-210**

Bonnet

Cast Iron

ASTM A536 ▼

G-211**

Bonnet O-ring†

Nitrile

ASTM D2000

G-212**

Body

Cast Iron

ASTM A536 ▼

* Fully encapsulated in molded rubber with no iron exposed
**18" - 48" ASTM B584
*** 14"-16" valves are provided with 316 stainless steel fasteners as standard
†18" - 48" EPDM standard
††Must use 1/2" under size shell cutter
+++ Manufacturers option to change material to Ductile Iron ASTM A536
▼ Material strength ASTM A536 65-45 minimum
