2-12 Inch T-USP2 Tapping Valve MJxFL
2-12 Inch T-USP2 Tapping Valve MJxFL
Catalog numbers:
- T-USP2-16 mechanical joint x flanged ends (with mechanical joint unassembled accessories)
- T-USP2-19 mechanical joint x flanged ends (less mechanical joint accessories)
Specifications:
- Size-- 2", 3", 4", 6", 8", 10", 12"
- Meets or exceeds all applicable requirements of ANSI/AWWA C509 Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
- Flanged end drilling complies with ASME/ANSI B16.1 class 125, B16.42 class 150 and with MSS SP-60
- Mechanical joint outlet complies with ANSI/AWWA C111 Standard
- Iron body with nominal 10 mils Pro-GardTM Fusion Bonded Epoxy Coated interior and exterior surfaces
- Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
- Iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron
- Non-rising stem (NRS)
- Triple O-ring seal (2 above the thrust collar and 1 below)
- 2" square wrench nut – open left or open right
- 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3450 kPa/35 barg) static test pressure
- UL Listed, FM Approved: 250 psig (1725 kPa/17 barg) maximum working pressure
- Designed for potable water applications
Options:
- Position indicators
- Stainless steel stem: Type 304, Type 316
- Low zinc, silicon bronze ASTM B98-C66100/H02 stem
- Handwheel
- EPDM disc and O-rings
Full Line Catalog
|

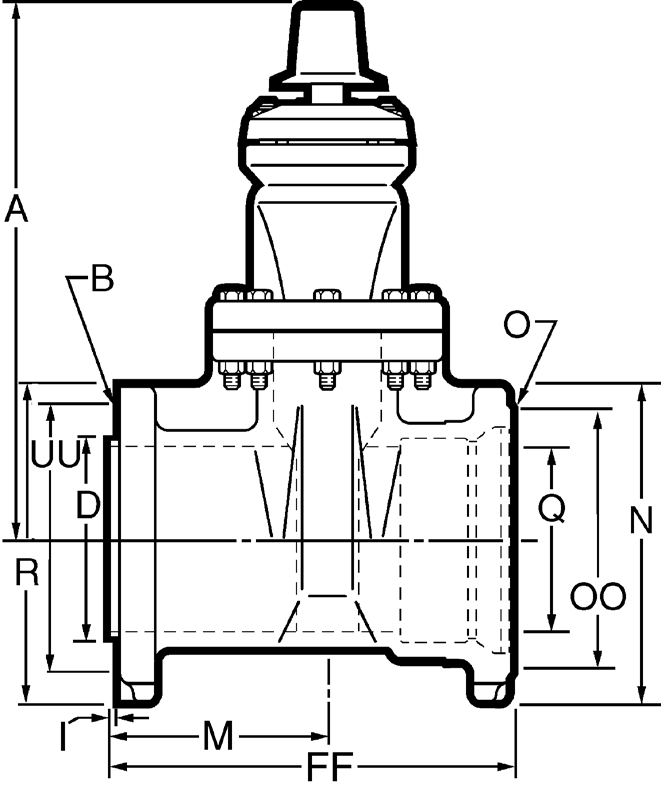

Dimensions* |
Nominal Size |
||||||
|
2" |
3" |
4" |
6" |
8" |
10" |
12" |
|
|
A |
9.88 |
12.38 |
14.19 |
18.00 |
21.50 |
22.50 |
22.50 |
|
R |
6.00 |
7.50 |
9.00 |
11.00 |
13.50 |
16.00 |
19.00 |
|
D |
2.97 |
3.97 |
5.00 |
7.00 |
9.00 |
11.00 |
13.00 |
|
I |
0.16 |
0.18 |
0.18 |
0.25 |
0.25 |
0.25 |
0.25 |
|
M |
4.46 |
4.78 |
6.24 |
6.75 |
7.50 |
8.44 |
8.26 |
|
UU |
4.75 |
6.00 |
7.50 |
9.50 |
11.75 |
14.25 |
17.00 |
|
N |
6.25 |
7.50 |
9.12 |
11.12 |
13.38 |
15.68 |
17.94 |
|
B (number and size of holes for FL) |
4--.75 |
4--.75 |
8--.75 |
8--.88 |
8--.88 |
12--1.0 |
12--1.0 |
|
Q (bore) |
2.30 |
3.30 |
4.30 |
6.30 |
8.30 |
10.30 |
12.30 |
|
FF |
8.55 |
8.99 |
11.91 |
13.00 |
14.75 |
15.80 |
16.26 |
|
O (number and size of holes for MJ) |
4--.75 |
4--.75 |
4--.88 |
6-.88 |
6--.88 |
8--.88 |
8--.88 |
|
OO (bolt circle diameter) |
4.75 |
6.19 |
7.50 |
9.50 |
11.75 |
14.00 |
16.25 |
|
Turns to open |
8 |
11 |
14 |
20.5 |
26.5 |
33 |
38.5 |
|
Weight* |
44 |
66 |
109 |
175 |
272 |
417 |
541 |

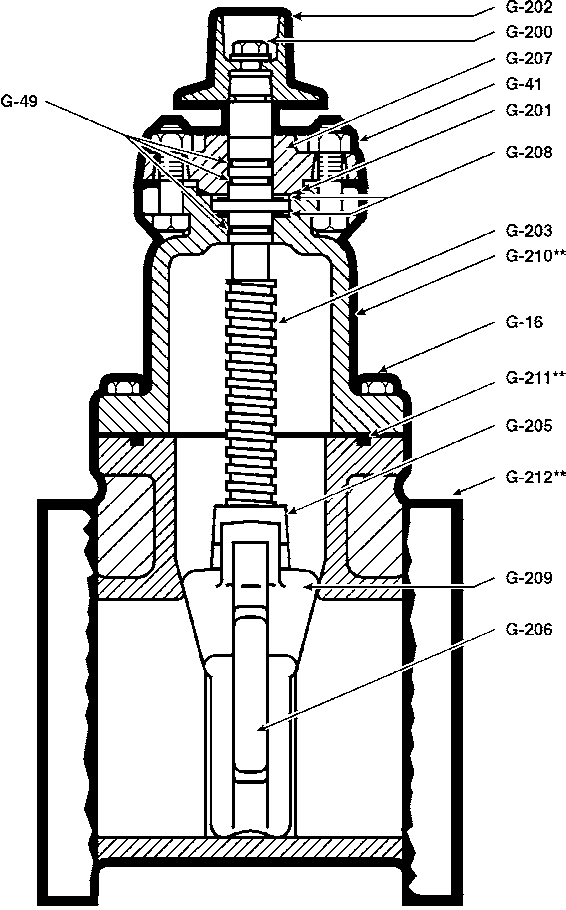

Resilient wedge gate valve parts
|
Catalog Part Number |
Description |
Material |
Material standard |
|
G-16 |
Bonnet bolts and nuts |
316 Stainless Steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-41 |
Stuffing box bolts and nuts |
316 Stainless Steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-49 |
Stem O-rings (3) |
Nitrile |
ASTM D2000 |
|
G-200 |
Wrench nut cap screw |
316 Stainless steel |
ASTM F593 |
|
G-201 |
Stuffing box seal |
Nitrile |
ASTM D2000 |
|
G-202 |
Wrench nut |
Ductile Iron |
ASTM A536 ▼ |
|
G-203 |
Stem |
Bronze |
ASTM B138 |
|
G-204 |
Handwheel (not shown) |
Cast Iron +++ |
ASTM A126 CL.B |
|
G-205 |
Stem nut |
Bronze |
ASTM B584 |
|
G-206 |
Guide cap bearings |
Acetal |
- |
|
G-207 |
Stuffing box with dirt seal + |
Ductile Iron** |
ASTM A536 ▼ |
|
G-208 |
Anti-friction washer (2) |
Acetal |
- |
|
G-209 |
Wedge Rubber encapsulated |
Ductile Iron* SBR |
ASTM A536 ▼ ASTM D2000 |
|
G-210** |
Bonnet |
Ductile Iron |
ASTM A536 ▼ |
|
G-211** |
Bonnet O-ring++ |
Neoprene |
ASTM D2000 |
|
G-212** |
Body |
Ductile Iron |
ASTM A536 ▼ |
*Fully encapsulated in molded rubber with no iron exposed, 2"-3" discs are made of cast iron ASTM A126 class B
+++ Manufacturers option to change material to Ductile Iron ASTM A536
▼ Material strength ASTM A536 65-45 minimum
+Dirt deal for 4"-12" valves ++2"-3" valves use bonnet gaskets
** 2"-3" stuffing boxes are cast iron ASTM 126 class B+
