3-12 Inch T-USP1 Tapping Valve MJxFL

3-12 Inch T-USP1 Tapping Valve MJxFL

Catalog numbers:

    • T-USP1-16 mechanical joint x flanged ends (with mechanical joint unassembled accessories)
    • T-USP1-19 mechanical joint x flanged ends (less mechanical joint accessories)

Specifications:

  • Sizes - 3", 4", 6", 8", 10", 12"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C515 Standard, certified to ANSI/NSF 61 & 372 standard, UL 262 listed, FM 1120/1130 approved
  • Inlet flange complies with ASME/ANSI B16.1 Class 125 drilling and with MSS SP-60
  • Mechanical joint outlet complies with ANSI/AWWA C111 Standard
  • Iron body with nominal 10 mils Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut (optional handwheel available)--open left or open right
  • 350 psig (2400 kPa/24 barg) maximum working pressure, 700 psig (4800 kPa/48 barg) static test pressure
  • UL Listed/FM Approved 350 psig (2400 kPa/24 barg)
  • Designed for potable water applications

Options:

  • Position indicators
  • Stainless steel stem: type 304 and type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • Handwheel
  • EPDM disc and O-rings

Submittal Drawing          Full Line Catalog

 T-USP1 Tapping Valve MJ FL Dimensions Drawing



Dimensions*

Nominal Size

3"

4"

6"

8"

10"

12"

A

12.38

14.19

18.0

21.50

25.50

28.62

R

7.50

9.00

11.00

13.50

16.00

19.00

D

3.97

5.00

7.00

9.00

11.00

13.00

I

0.18

0.18

0.25

0.25

0.25

0.25

M

4.73

6.24

6.75

7.75

8.52

7.25

UU (bolt circle diameter)

6.19

7.50

9.50

11.75

14.25

17.00

N

7.50

9.12

11.12

13.38

15.68

17.94

B (number and size of holes for FL)

4--.75

8--.75

8--.88

8--.88

12--1.00

12--1.00

Q (bore)

3.30

4.30

6.30

8.30

10.30

12.30

FF

8.99

11.91

13.00

14.62

15.95

15.24

O (number and size of holes for MJ)

4--.75

4--.88

6--.88

6--.88

8--.88

8--.88

OO (bolt circle diameter)

6.19

7.50

9.50

11.75

14.00

16.25

Turns to open

11

14

20.5

26.5

33

38.5

Weight*

66

118

163

260

401

530

* All dimensions are in inches. All weights include accessories are in pounds and approximate.

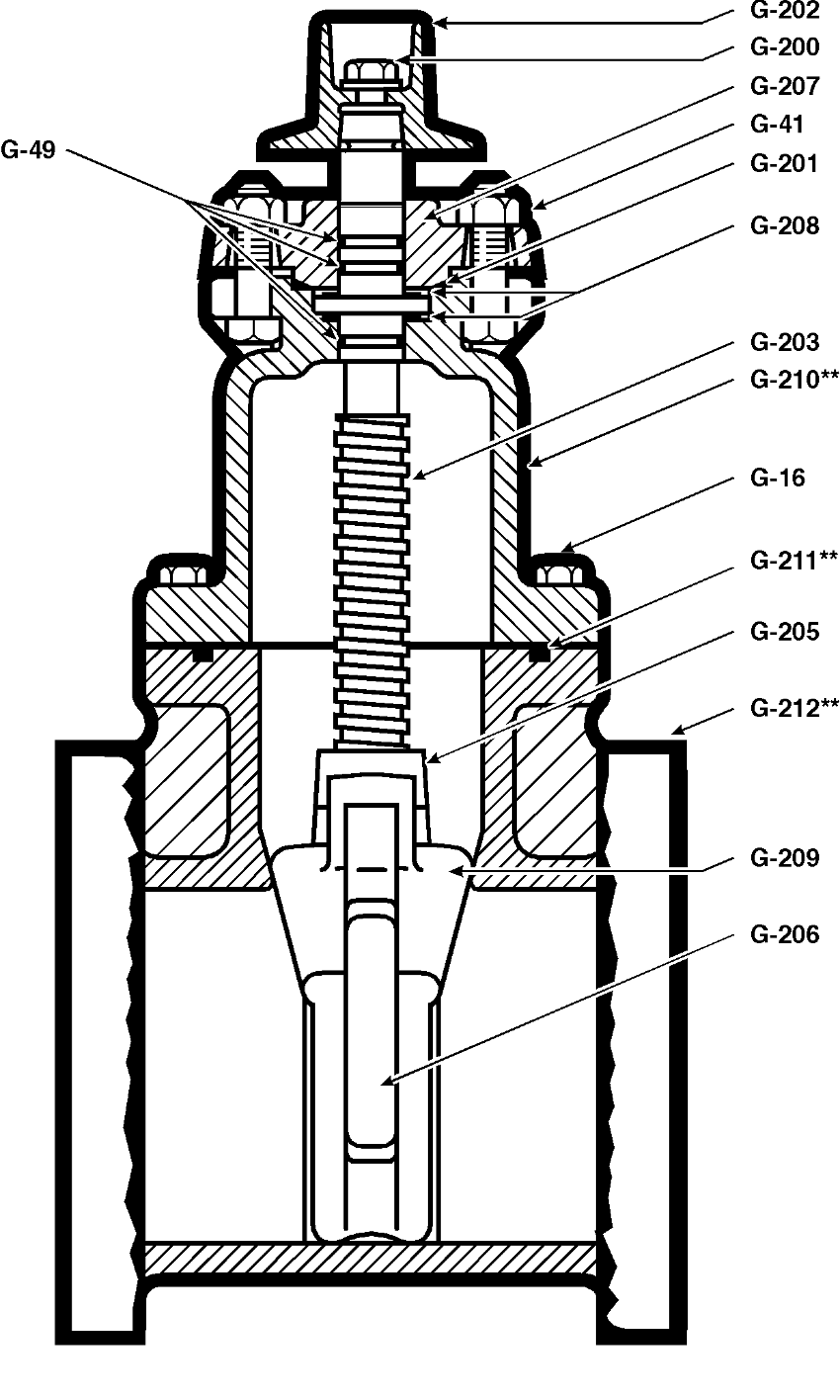

T-USP1 Tapping Valve MJ FL Parts Drawing

Resilient wedge gate valve parts

Catalog Part Number

Description

Material

Material standard

G-16

Bonnet bolts and nuts

316 Stainless steel

ASTM F593 (bolt) ASTM F594 (nut)

G-41

Stuffing box bolts and nuts

316 Stainless steel

ASTM F593 (bolt) ASTM F594 (nut)

G-49

Stem o-rings (3)

Nitrile

ASTM D2000

G-200

Wrench nut cap screw

316 Stainless steel

ASTM F593

G-201

Stuffing box seal

Nitrile

ASTM D2000

G-202

Wrench nut

Ductile Iron

ASTM A536 ▼

G-203

Stem

Bronze

ASTM B138

G-204

Handwheel (not shown)

Cast Iron

ASTM A126 CL.B

G-205

Stem nut

Bronze

ASTM B584

G-206

Guide cap bearings

Acetal

-

G-207

Stuffing box with dirt seal +++

Ductile Iron**** Rubber

ASTM A536 ASTM D2000

G-208

Anti-friction washer (2)

Acetal

-

G-209

Wedge

Rubber encapsulated

Ductile Iron* SBR

ASTM A536 ▼ ASTM D2000

G-210**

Bonnet

Ductile Iron

ASTM A536 ▼

G-211**

Bonnet O-ring ***

Nitrile

ASTM D2000

G-212**

Body

Ductile Iron

ASTM A536 ▼

* Fully encapsulated in molded rubber with no iron exposed, 3" discs are made of cast iron ASTM A126 class B
** Previous to 1999 these parts on 4"-12" valves were designed with a gasket instead of an O-ring and with additional bolts. Confirm the type of seal when ordering a replacement gasket or O-ring.
▼ Material strength ASTM A536 65-45 minimum
^ Per ANSI/AWWA C111 working pressure above 250psi requires the use of a special gasket rated for higher pressure.
+ Manufacturer's option to change material to ductile iron ASTM A536
++ 3" valves meet or exceed all applicable requirements of ANSI/AWWA C509 standard
+++ Dirt seal for 4"-12" valves
*** 3" valves use a bonnet gasket
**** 3" stuffing box is cast iron ASTM 126 class B+
