2-12 Inch A-USP2 RWGV MJxMJ
2-12 Inch A-USP2 RWGV MJxMJ
Catalog numbers:
- A-USP2-20 Mechanical joint ends (with accessories unassembled)
- A-USP2-23 Mechanical joint ends (less accessories)
- A-USP2-25 Mechanical joint ends (with transition gaskets accessories unassembled)
Specifications:
- Sizes: 2", 3", 4", 6", 8", 10", 12"
- Meets or exceeds all applicable requirements of ANSI/AWWA C509 Standard, UL 262 listed, FM 1120/1130 approved, and certified to ANSI/NSF 61 & 372
- Standard mechanical joint ends comply with ANSI/AWWA C111
- Iron body with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy Coated interior and exterior surfaces
- Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
- Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
- Non-rising stem (NRS)
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- 2" square wrench nut - open left or open right
- 350 psig (1725 kPa/17 barg) maximum working pressure, 700 psig (3450 kPa/35 barg) static test pressure
- UL Listed, FM Approved: 350 psig (1725 kPa/17 barg)
- Designed for potable water applications
Options*:
- Position indicators
- Stainless steel stem: Type 304, Type 316
- ASTM B98-C66100/H02 stem
- Handwheel
- EPDM Disc and O-rings
Resources:
- Manual
- Installation Preparation Check List
- Suggested Specifications
- Product Specifications
- Submittal Drawing 1 (U7420)
- Submittal Drawing 2 (U7399)
- Certificate of Compliance
|

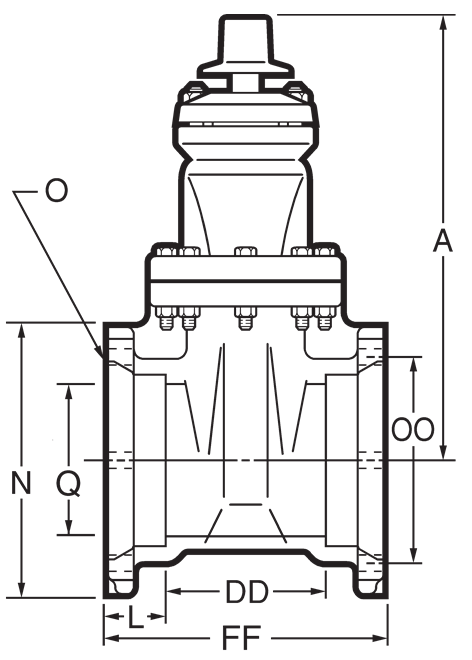

Dimension |
Nominal Size |
||||||
|
2" |
3” |
4" |
6" |
8" |
10" |
12" |
|
|
A |
9.88 |
12.38 |
14.9 |
18.00 |
21.50 |
25.50 |
28.62 |
|
FF |
8.50 |
9.62 |
10.00 |
11.60 |
12.68 |
14.88 |
15 |
|
L |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
|
N |
4.62 |
7.50 |
9.12 |
11.12 |
13.37 |
15.62 |
17.88 |
|
O (number and size of holes) |
4--.88 |
4--.88 |
4--.88 |
6--.88 |
6--.88 |
8--.88 |
8--.88 |
|
DD |
3.50 |
4.62 |
5.00 |
6.60 |
7.68 |
9.88 |
10 |
|
Q |
2.30 |
3.30 |
4.30 |
6.30 |
8.30 |
10.30 |
12.30 |
|
OO (bolt circle diameter) |
4.75 |
6.19 |
7.50 |
9.50 |
11.75 |
14.00 |
16.25 |
|
Turns to open |
8 |
11 |
14 |
20.5 |
26.5 |
33.0 |
38.5 |
|
Weight* |
40 |
83 |
120 |
186 |
280 |
405 |
540 |
|

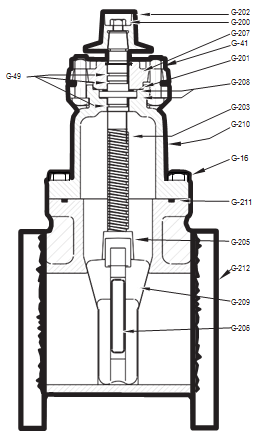

Catalog Part No. |
Description |
Material |
Material Standard |
|
G-16 |
Bonnet Bolts & Nuts |
316 Stainless Steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-41 |
Stuffing Box Bolts & Nuts |
316 Stainless Steel |
ASTM F593 (bolt) ASTM F594 (nut) |
|
G-49 |
Stem O-rings (3) |
Nitrile |
ASTM D2000 |
|
G-200 |
Wrench Nut Cap Screw |
316 Stainless Steel |
ASTM F593 |
|
G-201 |
Stuffing Box O-ring |
Nitrile |
ASTM D2000 |
|
G-202 |
Wrench Nut |
Ductile Iron |
ASTM A536 ▼ |
|
G-203 |
Stem |
Bronze |
ASTM B138 |
|
G-204 |
Hand Wheel (not shown) |
Cast Iron |
ASTM A126 CL.B |
|
G-205 |
Stem Nut |
Bronze |
ASTM B584 |
|
G-206 |
Guide Cap Bearings |
Acetal |
- |
|
G-207 |
Stuffing Box with dirt seal** |
Ductile Iron+++ Nitrile |
ASTM A536 ▼ ASTM D200 |
|
G-208 |
Anti-friction Washers (2) |
Acetal |
- |
|
G-209 |
Wedge, Rubber Encapsulation |
Ductile Iron* SBR |
ASTM A536 ▼ ASTM D2000 |
|
G-210** |
Bonnet |
Ductile Iron |
ASTM A536 ▼ |
|
G-211** |
Bonnet O-ring ++ |
Nitrile |
ASTM D2000 |
|
G-212** |
Body |
Ductile Iron |
ASTM A536 ▼ |
**Dirt seal on 4”-12” valves
▼ Material strength ASTM A536 65-45 minimum
+Manufacturer's option to change material to ductile iron ASTM A536
++2"-3" valves use a bonnet gasket
+++ 2"-3" stuffing boxes are cast iron ASTM A126 class B+
