2-3 INCH A-USP2 RWGV - THDxTHD

2-3 INCH A-USP2 RWGV - THDxTHD

Catalog number:

  • A-USP2-8 threaded ends

Specifications:

  • Sizes – 2", 2-1/2", 3"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509 Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
  • Threaded end dimensions comply wiht ANSI B2.1
  • Iron body with nominal 10 mils MUELLER® Pro-Gard® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
  • Iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal (2 above the thrust collar and 1 below)
  • 2” square wrench nut - open left or open right
  • 350 psig (1725 kPa/217 barg) maximum working pressure; 700 psig (3450 kPa/35 barg) static test pressure
  • 2-1/2"-3" size - UL Listed, FM Approved: 350 psig (1725 kPa/17barg)
  • Designed for potable water applications

Options:

  • Position indicators
  • ASTM B98-C66100/H02 stem
  • Handwheel

Resources:

Full Line Catalog

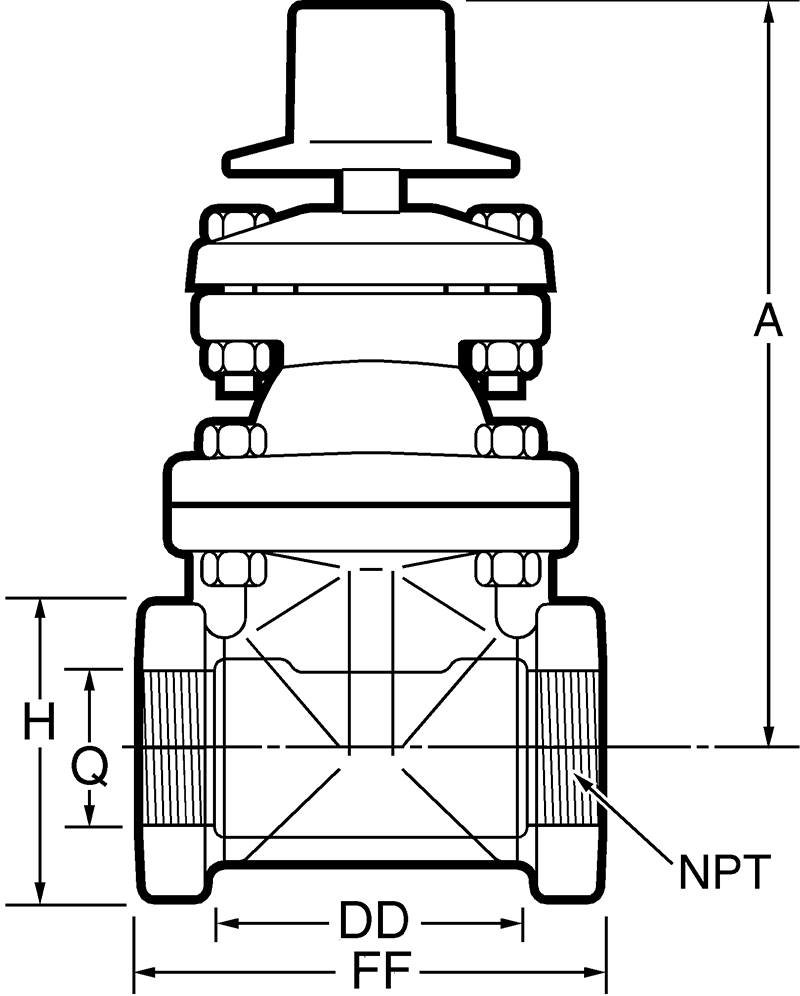

Dimension*

Nominal Size

2"

2-1/2"

3"

A

9.8812.3812.38

FF

5.885.886.88

Q (bore)

2.302.803.30

H (hex across flats)

3.884.255.00

DD

4.124.125.12

Turns to open
81111

Weight*

316062
*All dimensions are in inches. All weights are in pounds and are approximate.

A-2361

Catalog Part No.

Description

Material

Material Standard

 G-16

 Bonnet Bolts & Nuts

Stainless Steel

Type 316

 G-41

 Stuffing Box Bolts & Nuts

Stainless Steel

Type 316

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-200

Wrench Nut Cap Screw

Stainless Steel

Type 316

G-201

Stuffing Box with Seal

Ductile Iron Nitrile

ASTM A536 ▼ ASTM D2000

G-202

Wrench Nut

Ductile Iron

ASTM A536 ▼

G-203

Stem

Bronze

ASTM B138

G-204

Handwheel (not shown)

Cast Iron

ASTM A126 CL.B

G-205

Stem Nut

Bronze

ASTM B584

G-206

Guide Cap Bearings

Acetal

-

G-207

Stuffing box

Cast Iron+

ASTM A126 CL.B

G-208

Anti-friction Washers (2)

Acetal

-

 G-209

 Wedge, Rubber Encapsulation

Cast Iron *+ SBR

ASTM A126 CLB

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet gasket

Nitrile

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536 ▼

*Fully encapsulated in molded rubber with no iron exposed
▼ Material strength ASTM A536 65-45 minimum
+Manufacturer's option to upgrade material to ductile iron ASTM A536
