4-12 Inch A-USP1 RWGV SLxFL for Field Lok Gaskets

4-12 Inch A-USP1 RWGV SLxFL for Field Lok Gaskets

Catalog number: A-USP1-62

Specifications:

  • Slip On (less Field Lok gasket) x flange end
  • Sizes – 4", 6", 8", 12"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C515 Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372.
  • Slip-on ends with Field Lok gaskets are to be used on ductile iron pipe
  • Flange end drilling complies with ASME/ANSI B16.1 Class 125
  • Iron body with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut – open left or open right
  • 350 psig (2400 kPa/24 barg) maximum working pressure, 700 psig (4800 kPa/48 barg) static test pressure
  • UL Listed, FM Approved: 350 psig (2400 kPa/24 barg)
  • Designed for potable water applications
†Design and dimensions of the joint are manufactured under license of U.S. Pipe and Foundry Company.
††Field Lok is a trademark of U.S. Pipe and Foundry Company, used with permission.

Options*:

  • Position indicators
  • Stainless steel stem: Type 304, Type 316
  • ASTM B98-C66100/H02 stem
  • Handwheel
  • EPDM Disc and O-rings
*See Parts section below for more information on Resilient Wedge Gate Valve options.

Resources:

Full Line Catalog

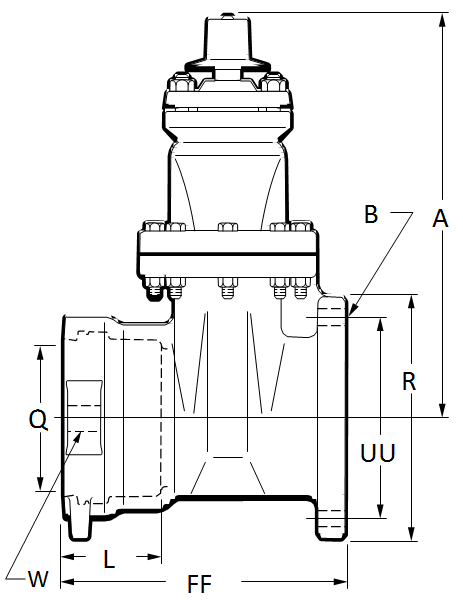

Dimension

Nominal Size

4"

6"

8"

10"

12"

A

14.19

18.00

21.50

25.50

28.62

Q (bore)

4.30

6.30

8.30

10.30

12.30

L

4.12

4.38

5.62

5.62

5.62

R

9.00

11.00

13.50

16.00

19.00

UU (bolt circle diameter for FL)

7.50

9.50

11.75

14.25

17.00

B (number and size of holes for FL)

8--.75

8--.88

8--.88

12-1.00

12--1.00

W (distance between strapping lug holes across face of valve ends)

8.62

10.62

13.12

16.38

18.12

FF

10.91

12.73

14.72

15.75

16.35

Turns to open

14

20.5

26.5

33

38.5

Weight*

93

140

368

368

523

*All dimensions are in inches. All weights are in pounds and are approximate.
**Field Lok is a trademark of U.S. Pipe and Foundry Company, used with permission.

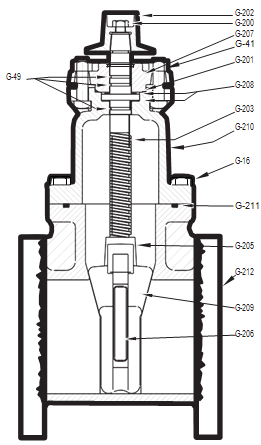

Catalog Part No.

Description

Material

Material Standard

G-16

Bonnet Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-41

Stuffing Box Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-200

Wrench Nut Cap Screw

316 Stainless Steel

ASTM F593

G-201

Stuffing Box O-ring

Nitrile

ASTM D2000

G-202

Wrench Nut

Ductile Iron

ASTM A536 ▼

G-203

Stem

Bronze

ASTM B138

G-204

Hand Wheel (not shown)

Cast Iron

ASTM A126 CL.B

G-205

Stem Nut

Bronze

ASTM B584

G-206

Guide Cap Bearings

Acetal

-

G-207

Stuffing Box with dirt seal

Ductile Iron Nitrile

ASTM A536 ▼ ASTM D2000

G-208

Anti-friction Washers (2)

Acetal

-

G-209

Wedge, Rubber Encapsulation

Ductile Iron* SBR

AASTM A536 ▼ ASTM D2000

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet O-ring

Nitrile

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536 ▼

*Fully encapsulated in molded rubber with no iron exposed
▼ Material strength ASTM A536 65-45 minimum
** Per ANSI/AWWA C111 working pressure above 250psi requires the use of a special gasket rated for higher pressure
