2-8 INCH A-USP2 RWGV - RADxRAD

2-8 INCH A-USP2 RWGV - RADxRAD

Catalog number:

    • A-USP2-37 radial compression ends

Specifications:

  • Sizes – 2", 2-1/2", 3", 4", 6", 8"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509, UL 262 Listed, FM 1120/1130Approved, and certified to ANSI/NSF 61 & 372
  • Radial compression ends fit IPS PVC plastic pipe
  • Ductile Iron body with nominal 10 mils MUELLER® Pro-Gard® Fusion Bonded Epoxy Coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
  • Iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal (2 above the thrust collar and 1 below)
  • 2” square wrench nut - open left or open right
  • 350 psig (1725 kPa/217 barg) maximum working pressure; 700 psig (3450 kPa/35 barg) static test pressure
  • UL Listed, FM Approved: 350 psig (1725 kPa/17 barg)
  • Designed for potable water applications

Options:

  • Position indicators
  • ASTM B98-C66100/H02 stem
  • Handwheel

Resources:

Full Line Catalog

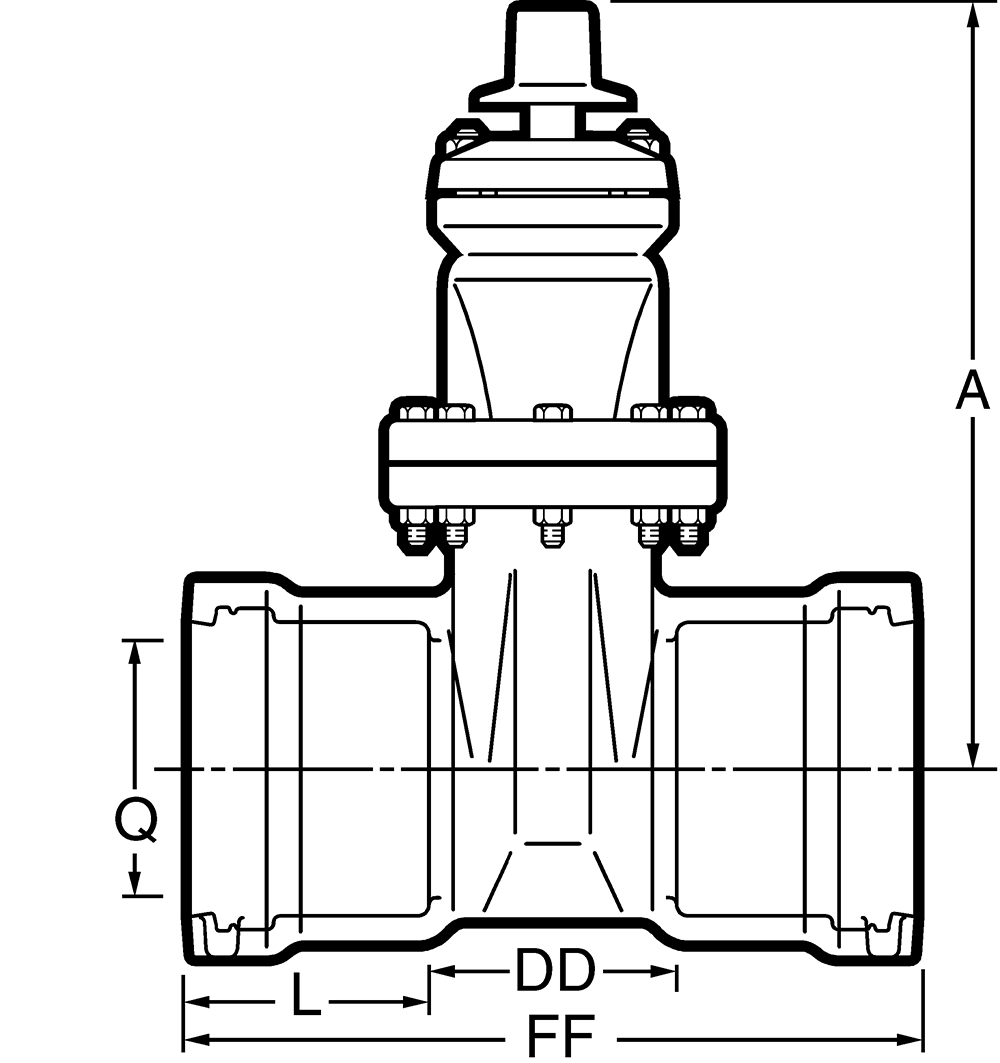

 2"- 8" A-USP2 RWGV - RAD. x RAD

Dimension*

Nominal Size

2"

2-1/2"

3"

4"

6"

8"

A

9.8812.3812.3814.1919.0021.50

FF

10.2510.7511.7513.4315.9118.40

L

3.503.694.124.465.466.20

Q (bore)

2.302.803.304.306.308.30

DD

3.253.373.514.514.996.00

Turns to open
811111420.526.5

Weight*

35656796155260
*All dimensions are in inches. All weights are in pounds and are approximate.

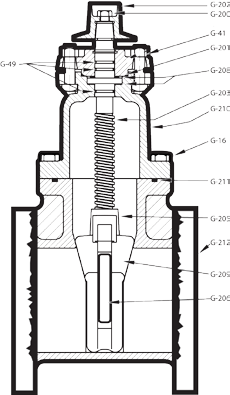

Catalog Part No.

Description

Material

Material Standard

 G-16

 Bonnet Bolts & Nuts

Stainless Steel

Type 316

 G-41

 Stuffing Box Bolts & Nuts

Stainless Steel

Type 316

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-200

Wrench Nut Cap Screw

Stainless Steel

Type 316

G-201

Stuffing Box with dirt seal ++

Ductile Iron** Nitrile

ASTM A536 ▼ ASTM D2000

G-202

Wrench Nut

Ductile Iron

ASTM A536 ▼

G-203

Stem

Bronze

ASTM B138

G-204

Handwheel (not shown)

Cast Iron +

ASTM A126 CL.B

G-205

Stem Nut

Bronze

ASTM B584

G-206

Guide Cap Bearings

Acetal

-

G-208

Anti-friction Washers (2)

Acetal

-

 G-209

 Wedge, Rubber Encapsulation

Ductile Iron SBR*

ASTM A536 ▼

G-210**

Bonnet

Ductile Iron

ASTM A536 ▼

G-211**

Bonnet O-ring +++

Nitrile

ASTM D2000

G-212**

Body

Ductile Iron

ASTM A536 ▼

*Fully encapsulated in molded rubber with no iron exposed, 2"-3" discs are cast iron ASTM A126 class B
▼ Material strength ASTM A536 65-45 minimum
+Manufacturer's option to change material to ductile iron ASTM A536
++ Dirt seal on 4"-12" valves
+++ 2"-3" valves use a bonnet gasket
** 2"-3" stuffing boxes are cast iron ASTM A126 class B+
