14-16 Inch A-USP1 RWGV SLxSL

14-16 Inch A-USP1 RWGV SLxSL

Catalog numbers:

    • A-USP1-38 Slip-on† ends with gasket
    • A-USP1-40 Slip-on† ends less gasket

Specifications:

  • Sizes – 14", 16"
  • Meets or exceeds all applicable requirements of ANSI/AWWA C515 Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
  • Slip-on ends fit plain end of classes 50 and 100 cast iron; ductile iron and AWWA C905 cast iron O.D. PVC
  • Ductile iron body with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy Coating interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
  • Ductile iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal (2 above the thrust collar and 1 below)
  • 2" square wrench nut - open left or open right
  • 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3450 kPa/35 barg) static test pressure
  • UL Listed, FM Approved – 250 psig (1725 kPa/17 barg)
  • Designed for potable water application
†Design and dimensions of the joint are manufactured under license of U.S. Pipe and Foundry Company.

Options*:

  • Position indicators
  • Spur or bevel geared actuator
  • Handwheel
  • Stainless Steel stem: Type 304, Type 316
  • Low zinc, silicon bronze ASTM B98-C66100/H02 stem
  • EPDM Disc and O-rings
*See Parts section below for more information on Resilient Wedge Gate Valve options.
·

·        Add flyer 13816

·        Add AUSP1 COC 14-24, attached

Resources:

Full Line Catalog

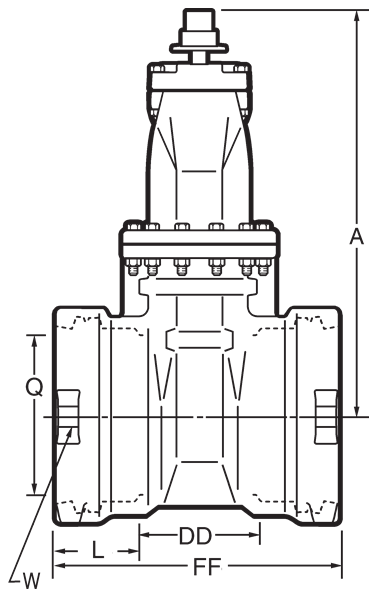

Dimension

Nominal Size

14"

16"

A

32.75

37.88

Q (bore)

14.38

16.00

W (distance between strapping lug holes across face of valve ends)

22.50

23.12

FF

24.42

25.32

L

6.00

6.00

DD

12.42

13.32

A - Spur Gear

40.49

43.58

A - Bevel Gear**

34.55

37.77

Turns to open (without gearing)

43.5

49

Turns to open (Spur gearing)

178

201

Turns to open (Bevel gearing)

174

196

Weight*

689

873

*All dimensions are in inches. All weights are in pounds and are approximate.
**Center line of operating nut to center line of valve.

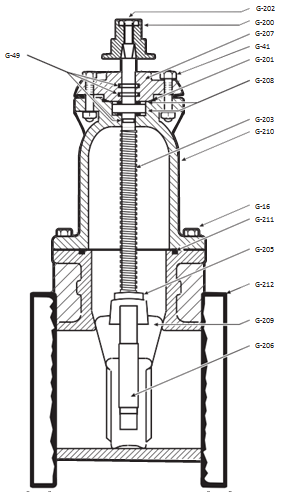

Catalog Part Number

Description

Material

Material Standard

G-16

Bonnet Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-41

Stuffing Box Bolts & Nuts

316 Stainless Steel

ASTM F593 (bolt) ASTM F594 (nut)

G-49

Stem O-rings (3)

Nitrile

ASTM D2000

G-200

Wrench Nut Cap Screw

316 Stainless Steel

ASTM F593

G-201

Stuffing Box O-ring

Nitrile

ASTM D2000

G-202

Wrench Nut

Cast Iron+

ASTM A126 CL.B

G-203

Stem

Bronze

ASTM B138

G-204

Hand Wheel (not shown)

Cast Iron+

ASTM A126 CL.B

G-205

Stem Nut

Bronze

ASTM B62

G-206

Guide Cap Bearings

Acetal

-

G-207

Stuffing Box

Ductile Iron

ASTM A536 ▼

G-208

Anti-friction Washers (2)

Acetal

-

G-209

Wedge, Rubber Encapsulation

Ductile Iron SBR*

ASTM A536 ▼ ASTM D2000

G-210

Bonnet

Ductile Iron

ASTM A536 ▼

G-211

Bonnet O-ring

Nitrile

ASTM D2000

G-212

Body

Ductile Iron

ASTM A536 ▼

Fully encapsulated in molded rubber with no iron exposed
+ Manufacturers option to change material to Ductile iron ASTM A536
▼ Material strength ASTM A536 65-45 minimum
